turbiti ozone nanobubbles enhanced swirl flow technology

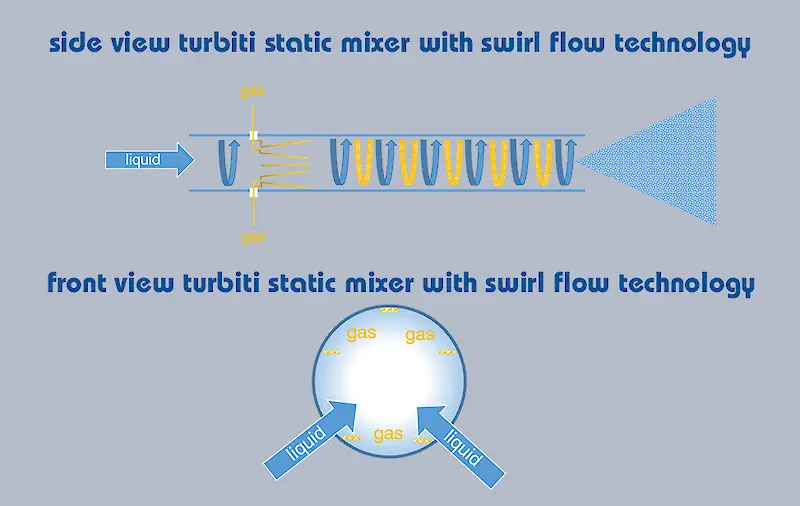

The static mixer has its origin from mixing two liquids, the first patent for a static mixer was filed in 1965. Instead of mixing two liquids there is also the possibility of mixing a liquid and a gas. The benefits of the static mixers is that they can treat large volumes of water at once. They are not sensitive to clogging. The acniti technology is based on this principle. Rather than a normal static mixer, acniti has implemented their proprietary swirl flow technology. The swirl flow ozone technology beats up the water and ozone, and due to the available shear forces in the mixer nanobubbles are created. In the schematic on the left you can get a visualization of how the technology works. The turbiti has an enhanced dissolved aeration performance, dissolving gasses like ozone efficient and in large quantities in water.

dealers and partners

The turbiti OEM series gives dealers and partners the opportunity to implement the turbiti into their own equipment and sell nanobubbles generator equipment under their own brand name. This product is only for dealers and partner of acniti, that have a license agreement and commit to buy certain quantities. When you are interested in becoming an Acniti partner contact us for your geographic location and market. Customers that want to buy direct from acniti, please have a look at our other turbiti products:

Turbiti ozone nanobubble mixer

  • OEM version of the ozone nanobubble mixer
  • ozone ultrafine bubbles are created with a swirl flow static mixer technology
  • flexible installation for your own tailored solutions
  • available to acniti dealers and partners
  • ultrafine ozone bubble generation ~ 100 nm bubble size
  • produces billions of ozone nanobubbles
  • ultrafine ozone bubbles stay in solution longer, maintaining longer ozone residual
  • enhanced technology to hold gas better in solution

Model

specifications

  • Model nameTurbiti 838 O3 venturi
    Model numberturbiti_838_OEM_venturi
    Spec sheetTurbiti 838 O3 venturi
    LiquidMetricImperial
    Minimum flow / minute 100 Liter26 Gallon
    Maximum flow / minute 250 Liter66 Gallon
    Minimum flow / hour 6.0 M3211.9 CF
    Maximum flow / hour 15 M3530 CF
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
    Recommended inlet filter(s)Medium pump inlet filter series
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute5.0 Liter1.3 Gallon
    Maximum flow / minute8.0 Liter2.1 Gallon
    Minimum flow / hour300 Liter79 Gallon
    Maximum flow / hour480 Liter127 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 350 kPa51 PSI
    Gas qualitySuitable for ozone
    Electrical
    Unit power consumptionNo pump included with this product. Estimated power consumption 750-1000 watts.
    Wetted partspolycarbonate, PVC, EPDM rubber
    Pump modelOzone resistant single stage centrifugal pumps
    ControlNo control
    Connections
    Water inletRc 2", inner thread
    Water outletRc 1", inner thread
    Gas inletvia venturi
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)105 x 603 x 105 mm4.1 x 23.7 x 4.1 inch
    weight1.8 Kg4.0 lbs.
    Shipping dim. (w)x(d)x(h)30 x 60 x 30 cm12 x 24 x 12 inch
    Shipping weight5 Kg11 lbs.
  • Model nameTurbiti 808 O3 active gasinlet
    Model numberturbiti_808_box304_active
    Spec sheetTurbiti 808 O3 active gasinlet
    LiquidMetricImperial
    Minimum flow / minute 4.0 Liter1.1 Gallon
    Maximum flow / minute 12 Liter3 Gallon
    Minimum flow / hour 240 Liter63 Gallon
    Maximum flow / hour 720 Liter190 Gallon
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
    Recommended inlet filter(s)Small pump inlet filter series
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute0.2 Liter0.1 Gallon
    Maximum flow / minute0.6 Liter0.2 Gallon
    Minimum flow / hour12 Liter3.2 Gallon
    Maximum flow / hour36 Liter9.5 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 350 kPa51 PSI
    Gas qualitySuitable for ozone
    Electrical
    Unit power consumptionNo pump included with this product. Estimated power consumption 100-500 watts.
    Wetted partspolycarbonate or ASA, PVC, EPDM rubber
    Pump modelOzone resistant single stage centrifugal pumps
    ControlNo control
    Connections
    Water inlet10 mm push to connect fitting or 3/8" on request
    Water outlet10 mm push to connect fitting or 3/8" on request
    Gas inletvia venturi
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)120 x 180 x 140 mm4.7 x 7.1 x 5.5 inch
    weight1.5 Kg3.3 lbs.
    Shipping dim. (w)x(d)x(h)16 x 33 x 16 cm6 x 13 x 6 inch
    Shipping weight2 Kg4 lbs.
  • Model nameTurbiti 828 O3 venturi
    Model numberturbiti_828_box304_venturi
    Spec sheetTurbiti 828 O3 venturi
    LiquidMetricImperial
    Minimum flow / minute 50 Liter13 Gallon
    Maximum flow / minute 100 Liter26 Gallon
    Minimum flow / hour 3.0 M3105.9 CF
    Maximum flow / hour 6.0 M3211.9 CF
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
    Recommended inlet filter(s)Medium pump inlet filter series
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute3.0 Liter0.8 Gallon
    Maximum flow / minute5.0 Liter1.3 Gallon
    Minimum flow / hour180 Liter48 Gallon
    Maximum flow / hour300 Liter79 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 350 kPa51 PSI
    Gas qualitySuitable for ozone
    Electrical
    Unit power consumptionNo pump included with this product. Estimated power consumption 500-750 watts.
    Wetted partspolycarbonate or ASA, PVC, EPDM rubber
    Pump modelOzone resistant single stage centrifugal pumps
    ControlNo control
    Connections
    Water inletRc 1.25", inner thread
    Water outletRc 3/4", inner thread
    Gas inletvia venturi
    Dimensions & weightMetricImperial
    Diameter x Length100 x 3833.9 x 15.1
    weight0.8 Kg1.8 lbs.
    Shipping dim. (w)x(d)x(h)45 x 20 x 20 cm18 x 8 x 8 inch
    Shipping weight2 Kg4 lbs.
  • Model nameTurbiti 848 O3 venturi
    Model numberturbiti_848_OEM_venturi
    Spec sheetTurbiti 848 O3 venturi
    LiquidMetricImperial
    Minimum flow / minute 400 Liter106 Gallon
    Maximum flow / minute 500 Liter132 Gallon
    Minimum flow / hour 24 M3848 CF
    Maximum flow / hour 30 M31,059 CF
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute14 Liter3.7 Gallon
    Maximum flow / minute16 Liter4.2 Gallon
    Minimum flow / hour840 Liter222 Gallon
    Maximum flow / hour960 Liter254 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 350 kPa51 PSI
    Gas qualitySuitable for ozone
    Electrical
    Unit power consumptionNo pump included with this product. Estimated power consumption 1500-2500 watts.
    Wetted partspolycarbonate, PVC, EPDM rubber
    Pump modelOzone resistant single stage centrifugal pumps
    ControlNo control
    Connections
    Water inletRc2", inner thread
    Water outletRc1", inner thread
    Gas inletvia venturi
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)105 x 740 x 105 mm4.1 x 29.1 x 4.1 inch
    weight1.8 Kg4.0 lbs.
    Shipping dim. (w)x(d)x(h)30 x 80 x 30 cm12 x 31 x 12 inch
    Shipping weight5 Kg11 lbs.
product variant
Model nameTurbiti 828 O3 active gasinlet
Model numberturbiti_828_box304_active
Water inletRc 1.25", inner thread
Water outletRc 3/4", inner thread
Gas inletSUS316 compression fitting 6mm or 1/4"
Model nameTurbiti 838 O3 active gasinlet
Model numberturbiti_838_OEM_active
Water inletRc 2", inner thread
Water outletRc 1", inner thread
Gas inletVenturi
Model nameTurbiti 848 O3 active gasinlet
Model numberturbiti_848_OEM_active
Water inletRc 2", inner thread
Water outletRc 1.25", inner thread
Gas inlet10mm or 3/8" SUS 316 compression fitting
