Nanobubble workhorse

The turbiti nanobubble generator is a first-class workhorse ultrafine bubble generator. It can be placed in difficult environments. The turbiti has no moving parts, so maintenance is minimal. The turbiti mixer comes in a stainless-steel box with standard durable male connectors for the water connections. The gas connection is a standard push to connect fitting. The gas connection is protected with a high-quality one-way valve, which protects your oxygen concentrator and avoids water in your gas hose. The turbiti can handle water with particles up to 2 mm.

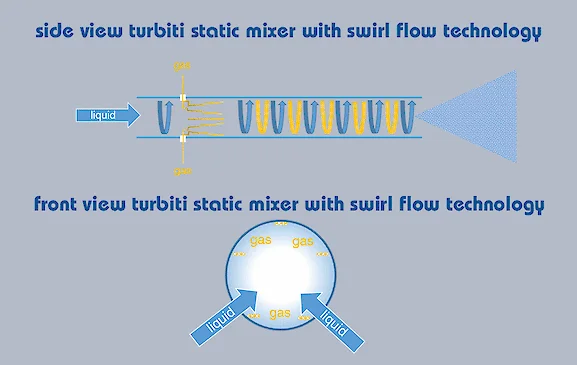

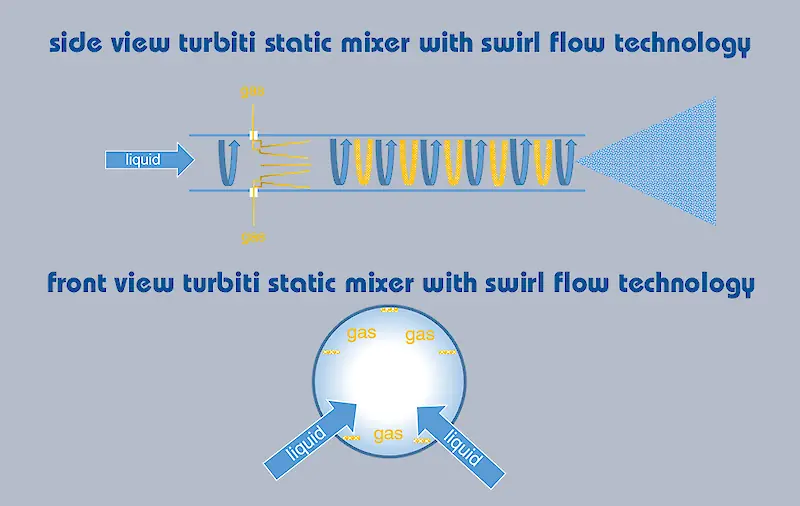

Turbiti enhanced static mixer technology

The static mixer has its origin from mixing two liquids, the first patent for a static mixer was filed in 1965. Instead of mixing two liquids, there is also the possibility of mixing a liquid and a gas. The benefits of the static mixers is that they can treat large volumes of water at once. They are not sensitive to clogging. The acniti technology is based on this principle. Rather than a normal static mixer, acniti has implemented their proprietary swirl flow technology. The swirl flow technology beats up the water and gas, and due to the available forces in the mixer, nanobubbles are created. In the schematic on the left, you can get a visualization of how the technology works. The turbiti has an enhanced dissolved aeration performance, dissolving gasses like oxygen efficient and in large quantities in the water.

One of the main benefits of this mixer is the low head required for nanobubble generation. A low head means that much less energy is required to be compared to the high head nanobubble generators which often require 5 times more pressure.

Nanobubble applications

This unit is suitable for water treatment applications, healthy drink water treatment for livestock i.e. chicken, cattle, pigs and poultry. A large industry using the nanobubble aeration mixers is the horticulture greenhouse production cultivating products such as tomatoes, bell peppers, carnation, roses, lettuce and strawberries. Apart from sweet water applications, the unit is also suitable for saltwater applications such as shrimp and salmon cultivation. We recommend using this product in combination with our industrial oxygen concentrator. Investing in both the oxygen concentrator and the turbiti nanobubble mixer, gives you peace of mind and many years of trouble-free ultrafine bubble generation.

Dealers and partners

The turbiti OEM series gives dealers and partners the opportunity to implement the turbiti into their own equipment and sell nanobubbles generator equipment under their own brand name. This product is only for dealers and partner of acniti, that have a license agreement and commit to buy certain quantities. When you are interested in becoming an Acniti partner, contact us for your geographic location and market. Customers that want to buy direct from acniti, please have a look at our other turbiti products:

Turbiti nanobubble mixer

  • easy to install
  • ready to connect to many different standard pumps
  • saltwater version effectively used in the ocean and saltwater applications
  • aeration of lakes and ponds with algae contamination
  • nanobubble wastewater aeration
  • fish cultivation
  • agriculture production
  • nanobubble drinking water for animals, chickens pigs, cows
  • Turbiti produces billions of nanobubbles

Model

specifications

  • Model nameTurbiti 737
    Model numberturbiti_737_box304
    Spec sheetTurbiti 737
    LiquidMetricImperial
    Minimum flow / minute 150 Liter40 Gallon
    Maximum flow / minute 400 Liter106 Gallon
    Minimum flow / hour 9.0 M3317.8 CF
    Maximum flow / hour 24 M3848 CF
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.

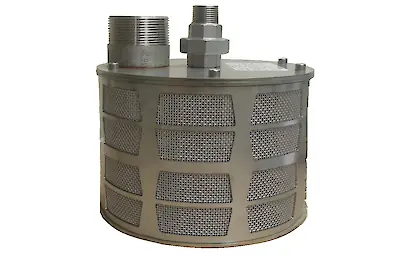

    Recommended inlet filter(s)Medium pump inlet filter series
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute5.0 Liter1.3 Gallon
    Maximum flow / minute8.0 Liter2.1 Gallon
    Minimum flow / hour300 Liter79 Gallon
    Maximum flow / hour480 Liter127 Gallon
    Pressure minimum 40 kPa6 PSI
    Pressure maximum 350 kPa51 PSI
    Gas qualityNo corrosive gasses: suitable for O2, air, CO2, N2
    Gas remarkThe mentioned pressures are recommended pressures for bubble generation. The product itself can withstand pressures up to 400 kPa.
    Electrical
    Unit power consumptionNo pump included with this product. Estimated power consumption 750-1000 watts.
    Wetted partsnylon based resins, silicone tube, PPS, EPDM
    Pump modelThis product works both with submersible pumps and single stage centrifugal pumps.
    Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
    ControlNo automatic operation
    Connections
    Water inletR 2" male connector (50 mm)
    Water outletR 1" male connector (25 mm)
    Gas inlet10mm standard push-to-connect fitting, 3/8 on request
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)405 x 100 x 130 mm15.9 x 3.9 x 5.1 inch
    weight2.8 Kg6.2 lbs.
    Shipping dim. (w)x(d)x(h)12 x 34 x 12 cm5 x 13 x 5 inch
    Shipping weight5 Kg11 lbs.
    • The turbiti UFB mixer works normally well with low head pumps using 750 to 1000 watt of power. (ask us for more details)
  • Model nameTurbiti 707
    Model numberturbiti_707_box304
    Spec sheetTurbiti 707
    LiquidMetricImperial
    Minimum flow / minute 7.0 Liter1.8 Gallon
    Maximum flow / minute 20 Liter5 Gallon
    Minimum flow / hour 420 Liter111 Gallon
    Maximum flow / hour 1,200.0 Liter317 Gallon
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
    Recommended inlet filter(s)Small pump inlet filter series
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute0.2 Liter0.1 Gallon
    Maximum flow / minute0.6 Liter0.2 Gallon
    Minimum flow / hour12 Liter3.2 Gallon
    Maximum flow / hour36 Liter9.5 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 400 kPa58 PSI
    Gas qualityNo corrosive gasses: suitable for O2, air, CO2, N2
    Electrical
    Unit power consumptionNo pump included with this product. Estimated power consumption 200-850 watts.
    Wetted partsnylon based resins
    Pump modelThis product works both with submersible pumps and single stage centrifugal pumps.
    Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
    ControlNo control
    Connections
    Water inletSUS316 10mm push to connect quick fitting or 3/8" compression fitting
    Water outlet10mm or 3/8"
    Gas inlet6mm push to connect quick fitting or 1/4" on request
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)120 x 180 x 140 mm4.7 x 7.1 x 5.5 inch
    weight0.67 Kg1.5 lbs.
    Shipping dim. (w)x(d)x(h)16 x 33 x 16 cm6 x 13 x 6 inch
    Shipping weight2 Kg4 lbs.
    • Model nameTurbiti 727
      Model numberturbiti_727_box304
      Spec sheetTurbiti 727
      LiquidMetricImperial
      Minimum flow / minute 75 Liter20 Gallon
      Maximum flow / minute 150 Liter40 Gallon
      Minimum flow / hour 4.5 M3158.9 CF
      Maximum flow / hour 9.0 M3317.8 CF
      water temperature minimum-20 ℃-4 ℉
      water temperature maximum50 ℃122 ℉
      Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
      AmbientMetricImperial
      Ambient temperature minimum-20 ℃-4 ℉
      Ambient temperature maximum50 ℃122 ℉
      Relative humidity minimum0 %0 %
      Relative humidity maximum100 %100 %
      GasMetricImperial
      Minimum flow / minute2.5 Liter0.7 Gallon
      Maximum flow / minute5.0 Liter1.3 Gallon
      Minimum flow / hour150 Liter40 Gallon
      Maximum flow / hour300 Liter79 Gallon
      Pressure minimum 50 kPa7 PSI
      Pressure maximum 350 kPa51 PSI
      Gas qualityNo corrosive gasses: suitable for O2, air, CO2, N2
      Electrical
      Unit power consumptionNo pump included with this product. Estimated power consumption 100-250 watts.
      Wetted partsAcrylic Styrene Acrylonitrile, PVC, EPDM
      Pump modelThis product works both with submersible pumps and single stage centrifugal pumps.
      Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
      ControlNo automatic operation
      Connections
      Water inlet25 mm or 1 inch threaded connection
      Water outlet20 mm or 3/4 inch threaded connection
      Gas inlet10 mm push to connect fitting
      Dimensions & weightMetricImperial
      Dim. (w) x (d) x (h)113 x 275 x 140 mm4.4 x 10.8 x 5.5 inch
      weight1.9 Kg4.2 lbs.
      Shipping dim. (w)x(d)x(h)16 x 33 x 16 cm6 x 13 x 6 inch
      Shipping weight3 Kg7 lbs.
      • Model nameTurbiti 747
        Model numberturbiti_747_box304
        Spec sheetTurbiti 747
        LiquidMetricImperial
        Minimum flow / minute 400 Liter106 Gallon
        Maximum flow / minute 600 Liter159 Gallon
        Minimum flow / hour 24 M3848 CF
        Maximum flow / hour 36 M31,271 CF
        water temperature minimum-20 ℃-4 ℉
        water temperature maximum50 ℃122 ℉
        AmbientMetricImperial
        Ambient temperature minimum-20 ℃-4 ℉
        Ambient temperature maximum50 ℃122 ℉
        Relative humidity minimum0 %0 %
        Relative humidity maximum100 %100 %
        GasMetricImperial
        Minimum flow / minute14 Liter3.7 Gallon
        Maximum flow / minute16 Liter4.2 Gallon
        Minimum flow / hour840 Liter222 Gallon
        Maximum flow / hour960 Liter254 Gallon
        Pressure minimum 50 kPa7 PSI
        Pressure maximum 350 kPa51 PSI
        Gas qualityAir, CO2, N2, O2 including ozone on request.
        Electrical
        Unit power consumptionNo pump included with this product. Estimated power consumption 1000-2000 watts.
        Wetted partsAcrylic Styrene Acrylonitrile, PVC, EPDM
        Connections
        Water inlet50 mm or 2 inch threaded connection
        Water outlet40 mm or 1.5 inch threaded connection
        Gas inlet10 mm push to connect fitting or 3/8" on request
        Dimensions & weightMetricImperial
        Dim. (w) x (d) x (h)166 x 540 x 166 mm6.5 x 21.3 x 6.5 inch
        weight4.8 Kg10.6 lbs.
        Shipping dim. (w)x(d)x(h)24 x 55 x 24 cm9 x 22 x 9 inch
        Shipping weight6 Kg13 lbs.
        product variant
        Model nameTurbiti 636 seawater
        Model numberturbiti_636_box316L
        Water inletR 2" male connector (50 mm)
        Water outletR 1" male connector (25 mm)
        Gas inlet10mm standard push-to-connect fitting, 3/8 on request
        • Seawater or saltwater variant comes with either bronze or sus316(L) gas fittings.
        Model nameTurbiti 626 seawater
        Model numberturbiti_626_box304
        Water inlet25 mm or 1 inch threaded connection
        Water outlet20 mm or 3/4 inch threaded connection
        Gas inlet10 mm push to connect fitting or 3/8" on request
        • Seawater or saltwater variant comes with either bronze or SUS316(L) gas fittings.
        Model nameTurbiti 646 seawater
        Model numberturbiti_646_box304
        Water inletR 2" male connector (50 mm)
        Water outletR 1" male connector (25 mm)
        Gas inlet10mm standard push-to-connect fitting, 3/8 on request
        • Seawater or saltwater variant comes with either bronze or sus316(L) gas fittings.
