Turbiti 757 Nanobubble Mixer - 800 to 1200 LPM Technical Specs

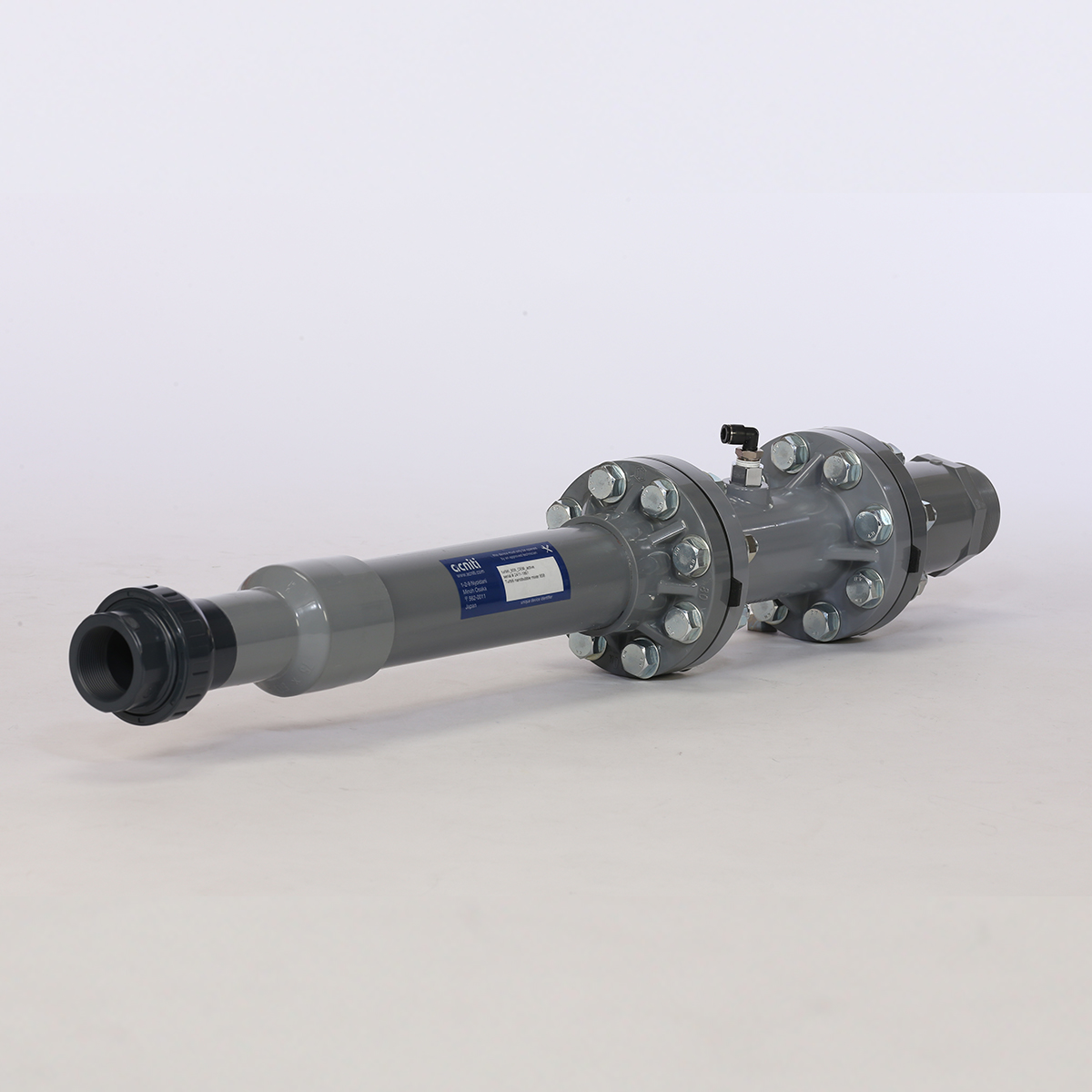

The Turbiti 757 is a high-flow nanobubble mixer handling 800 to 1200 LPM with air or oxygen gas input. Using turbulent ejector technology, it generates ultrafine bubbles for large-scale water treatment, aquaculture, and agricultural aeration.
Back to: Turbiti
| General | |||
|---|---|---|---|
| 1 | Model name | Turbiti Turbulent Mixer Nanobubble Generator for Industrial Use | |
| 2 | Model number | turbiti_757 | |
| 3 | Technology | Turbulent Mixer Ejector | |
| Liquid | Metric | Imperial | |
| 4 | Minimum flow / minute | 800 Liter | 211 Gallon |
| 5 | Maximum flow / minute | 1,200.0 Liter | 317 Gallon |
| 6 | Minimum flow / hour | 48 M3 | 1,695 CF |
| 7 | Maximum flow / hour | 72 M3 | 2,543 CF |
| 8 | water temperature minimum | -20 ℃ | -4 ℉ |
| 9 | water temperature maximum | 50 ℃ | 122 ℉ |
| 10 | Strainer availability and size | No strainer, strainer required when particles larger than 5 mm. | |
| Ambient | Metric | Imperial | |
| 11 | Ambient temperature minimum | -20 ℃ | -4 ℉ |
| 12 | Ambient temperature maximum | 50 ℃ | 122 ℉ |
| 13 | Relative humidity minimum | 0 % | |
| 14 | Relative humidity maximum | 100 % | |
| Gas | Metric | Imperial | |
| 15 | Minimum flow / minute | 0.0 M3 | 1.0 CF |
| 16 | Maximum flow / minute | 0.0 M3 | 1.1 CF |
| 17 | Minimum flow / hour | 1.7 M3 | 59 CF |
| 18 | Maximum flow / hour | 1.9 M3 | 68 CF |
| 19 | Pressure minimum | 140 kPa | 20 PSI |
| 20 | Pressure maximum | 350 kPa | 51 PSI |
| 21 | Gas quality | Air or Oxygen | |
| Electrical | Metric | Imperial | |
| 22 | Wetted parts | polycarbonate, PVC, EPDM rubber | |
| Connections | |||
| 23 | Water inlet | Rc3", outer thread | |
| 24 | Water outlet | Rc2", inner thread | |
| 25 | Gas inlet | 10mm or 3/8" SUS 316 compression fitting | |
| Dimensions & weight | Metric | Imperial | |
| 26 | Diameter x Length | 185 x 1053 | 7.3 x 41.5 |
| 27 | weight | 12.6 Kg | 27.8 lbs. |
| 28 | HS code | 8479.82.0040 | 8479.82.0040 |
| 29 | Shipping dim. (w)x(d)x(h) | 27 x 115 x 27 cm | 11 x 45 x 11 inch |
| 30 | Shipping weight | 17 Kg | 37 lbs. |

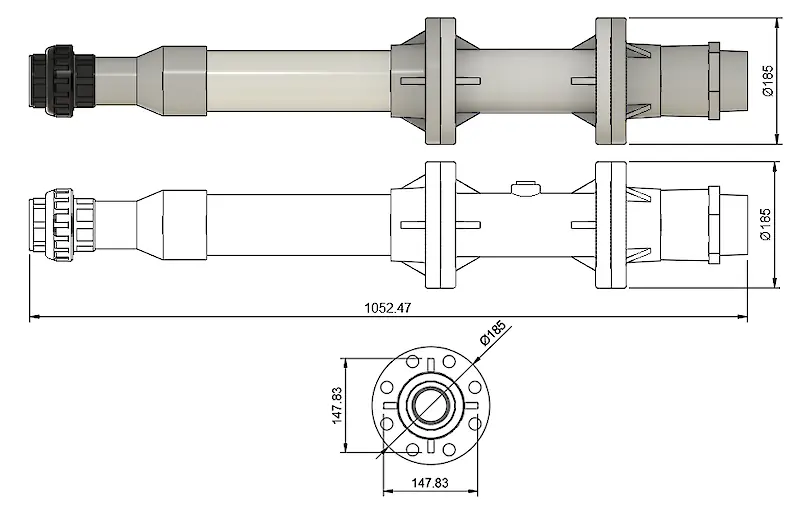

Dimensional drawing turbiti 757
