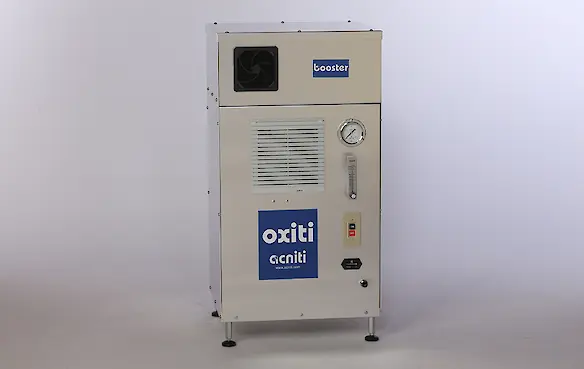

Oxiti Booster 5L 100V Industrial Oxygen Generator Specifications
Complete technical specifications for the Oxiti Booster 5 LPM 100V PSA industrial oxygen generator for non-medical applications. Delivers 1-5 LPM at 87-96% purity with boosted pressure of 35-400 kPa for aquaculture, pond aeration, and water treatment. Designed for Japanese 100V systems. Not for medical or patient care use.
Back to: Oxiti Booster
| Description | Metric | Imperial | |
|---|---|---|---|
| 1 | Model name | Oxiti Booster 5L 100V: Industrial Oxygen Generator | Acniti | Oxiti Booster 5L 100V: Industrial Oxygen Generator | Acniti |
| 2 | Technology | PSA | PSA |
| Ambient | Metric | Imperial | |
| 3 | Ambient temperature minimum | 10 ℃ | 50 ℉ |
| 4 | Ambient temperature maximum | 40 ℃ | 104 ℉ |
| 5 | Relative humidity minimum | 15 % | 15 % |
| 6 | Relative humidity maximum | 95 % | 95 % |
| Gas | Metric | Imperial | |
| 7 | Minimum flow / minute | 1.0 Liter | 0.3 Gallon |
| 8 | Maximum flow / minute | 5.0 Liter | 1.3 Gallon |
| 9 | Minimum flow / hour | 60 Liter | 16 Gallon |
| 10 | Maximum flow / hour | 300 Liter | 79 Gallon |
| 11 | Pressure minimum | 70 kPa | 10 PSI |
| 12 | Pressure maximum | 400 kPa | 58 PSI |
| 13 | Gas quality | 87% to 96% Oxygen | 87% to 96% Oxygen |
| 14 | Gas remark | ambient air | ambient air |
| Electrical | Metric | Imperial | |
| 15 | Unit phase Ø voltage | 1 Ø 200 VAC 50Hz or 60 Hz | 1 Ø 200 VAC 50Hz or 60 Hz |
| 16 | Unit power consumption | 1100 watts 50 Hz or 1320 watts 60 Hz | 1100 watts 50 Hz or 1320 watts 60 Hz |
| Connections | Metric | Imperial | |
| 17 | Gas inlet | 10 mm push to connect fitting or 3/8" on request | 10 mm push to connect fitting or 3/8" on request |
| Dimensions & weight | Metric | Imperial | |
| 18 | Dim. (w) x (d) x (h) | 480 x 460 x 690 mm | 18.9 x 18.1 x 27.2 inch |
| 19 | weight | 36 Kg | 79.4 lbs. |
| 20 | Shipping dim. (w)x(d)x(h) | 53 x 52 x 70 cm | 21 x 20 x 28 inch |
| 21 | Shipping weight | 39 Kg | 86 lbs. |
Important Notice
This oxygen generator is designed for industrial, laboratory, and research applications only. Not intended for medical use or patient care. For industrial oxygen generation in aquaculture, water treatment, ozone generation, and laboratory applications.
