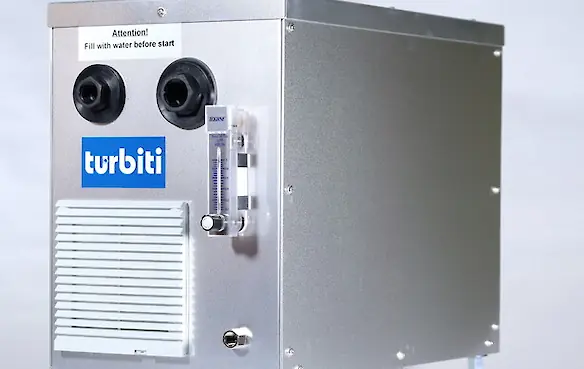

Turbiti Fusion 606 - Saltwater Nanobubble Mixer, 9-15 LPM
The Turbiti Fusion 606 is a compact nanobubble generator built for saltwater and seawater environments where corrosion resistance matters. Using turbulent ejector technology, it delivers 9-15 LPM with O2, air, CO2, or N2. SUS316 wetted parts handle the harsh chemistry that standard freshwater mixers can't. Suited for marine aquaculture, coastal water treatment, and saline research applications.
Back to: Turbiti Fusion
| General | |||
|---|---|---|---|
| 1 | Model name | Turbiti Fusion: Compact Micro Nanobubble Generator for Water Treatment | |
| 2 | Model number | turbiti_fusion_606_115V | |
| 3 | Technology | Turbulent Mixer Ejector | |
| Liquid | Metric | Imperial | |
| 4 | Minimum flow / minute | 9.0 Liter | 2.4 Gallon |
| 5 | Maximum flow / minute | 15 Liter | 4.0 Gallon |
| 6 | Minimum flow / hour | 540 Liter | 143 Gallon |
| 7 | Maximum flow / hour | 900 Liter | 238 Gallon |
| 8 | water temperature minimum | 0 ℃ | 32 ℉ |
| 9 | water temperature maximum | 40 ℃ | 104 ℉ |
| Ambient | Metric | Imperial | |
| 10 | Ambient temperature minimum | -10 ℃ | 14 ℉ |
| 11 | Ambient temperature maximum | 40 ℃ | 104 ℉ |
| 12 | Relative humidity minimum | 0 % | |
| 13 | Relative humidity maximum | 90 % | |
| Gas | Metric | Imperial | |
| 14 | Minimum flow / minute | 0.2 Liter | 0.1 Gallon |
| 15 | Maximum flow / minute | 0.6 Liter | 0.2 Gallon |
| 16 | Minimum flow / hour | 12 Liter | 3.2 Gallon |
| 17 | Maximum flow / hour | 36 Liter | 9.5 Gallon |
| 18 | Pressure minimum | 50 kPa | 7 PSI |
| 19 | Pressure maximum | 400 kPa | 58 PSI |
| 20 | Gas quality | No corrosive gases | |
| 21 | Gas remark | O2, Air, CO2, N2 | O2, Air, CO2, N2 |
| Electrical | Metric | Imperial | |
| 22 | Unit phase Ø voltage | 1 Ø 115 VAC | |
| 23 | Unit power consumption | 850 watts | 1.14 HP |
| 24 | Wetted parts | SUS304, SUS316, PVC, ASA, brass | |
| 25 | Pump motor 50Hz | 550 Watt | 0.7 hp |
| 26 | Pump head 50Hz | 35 Meter | 115 ft |
| Connections | |||
| 27 | Water inlet | RC 3/4" | |
| 28 | Water outlet | RC 3/8" | |
| 29 | Gas inlet | 6mm or 1/4" | |
| Dimensions & weight | Metric | Imperial | |
| 30 | Dim. (w) x (d) x (h) | 270 x 550 x 450 mm | 10.6 x 21.7 x 17.7 inch |
| 31 | weight | 18.8 Kg | 41.4 lbs. |
| 32 | HS code | 8479.82.0040 | 8479.82.0040 |
| 33 | Shipping dim. (w)x(d)x(h) | 36 x 61 x 46 cm | 14 x 24 x 18 inch |
| 34 | Shipping weight | 21 Kg | 46 lbs. |
| Remarks | |||
| 35 | Other remarks | ||
