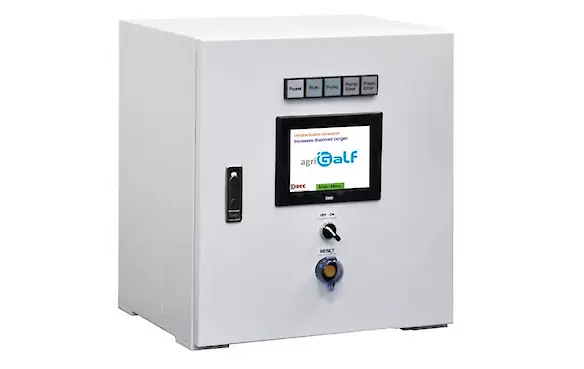

agriGaLF 15 specs
ultrafine bubble generator agriGaLF 15 spec sheet. A spec sheet for the nanobubble generator.
Back to: agriGaLF
| Description | Metric | Imperial | |
|---|---|---|---|
| 1 | Model name | agriGaLF 15 | agriGaLF 15 |
| 2 | Model number | FZ1G-15 | FZ1G-15 |
| 3 | Technology | Pressurized Dissolution | Pressurized Dissolution |
| Liquid | Metric | Imperial | |
| 4 | Flow / minute | 25 Liter | 6.6 Gallon |
| 5 | Flow / hour | 1.5 M3 | 53.0 CF |
| 6 | water temperature minimum | 0 ℃ | 32 ℉ |
| 7 | water temperature maximum | 50 ℃ | 122 ℉ |
| 8 | Strainer availability and size | Yes 400 μm | Yes 400 μm |
| 9 | Recommended inlet filter(s) | Small pump inlet filter series | Small pump inlet filter series |
| Ambient | Metric | Imperial | |
| 10 | Ambient temperature minimum | 0 ℃ | 32 ℉ |
| 11 | Ambient temperature maximum | 40 ℃ | 104 ℉ |
| 12 | Relative humidity minimum | 45 % | 45 % |
| 13 | Relative humidity maximum | 85 % | 85 % |
| Gas | Metric | Imperial | |
| 14 | Flow / minute | 1.0 Liter | 0.3 Gallon |
| 15 | Flow / hour | 60 Liter | 16 Gallon |
| 16 | Pressure | 130 kPa | 19 PSI |
| 17 | Gas quality | Do not use corrosive gases. Use of Oxygen, Carbon Dioxide, Nitrogen or Ambient Air is allowed. | Do not use corrosive gases. Use of Oxygen, Carbon Dioxide, Nitrogen or Ambient Air is allowed. |
| 18 | Gas remark | Gas intake time 3 seconds / 2 minutes. | Gas intake time 3 seconds / 2 minutes. |
| Electrical | Metric | Imperial | |
| 19 | Unit phase Ø voltage | 1 Ø 110 ~ 120 VAC | 1 Ø 110 ~ 120 VAC |
| 20 | Unit power consumption | 1000 watts | 1000 watts |
| 21 | Wetted parts | PP | PP |
| 22 | Pump phase Ø voltage | 1 Ø 100 VAC / 1 Ø 200 VAC | 1 Ø 100 VAC / 1 Ø 200 VAC |
| 23 | Pump motor 50Hz | 170 Watt | 0.2 hp |
| 24 | Pump motor 60Hz | 265 Watt | 0.4 hp |
| 25 | Pump head 50Hz | 15 Meter | 49 ft |
| 26 | Pump head 60Hz | 21 Meter | 69 ft |
| 27 | Pump phase Ø voltage 60Hz | 1 Ø 100 VAC / 1 Ø 200 VAC | 1 Ø 100 VAC / 1 Ø 200 VAC |
| 28 | Pump suction method | Spiral magnetic drive pump | Spiral magnetic drive pump |
| 29 | Pump pressure setting | Manual via valve | Manual via valve |
| 30 | Control | PLC-control | PLC-control |
| Dimensions & weight | Metric | Imperial | |
| 31 | Dim. (w) x (d) x (h) | 550 x 420 x 610 mm | 21.7 x 16.5 x 24.0 inch |
| 32 | weight | 69 Kg | 152.1 lbs. |
| 33 | HS code | 8543.70-001 | 8543.70-001 |
| 34 | Shipping dim. (w)x(d)x(h) | 104 x 96 x 104 cm | 41 x 38 x 41 inch |
| 35 | Shipping weight | 107 Kg | 236 lbs. |
