Oziti 1G Benchtop Ozone Generator - 1 g/h, Corona Discharge

Ozone Systems

The Oziti 1G is a compact benchtop ozone generator delivering up to 1 g/h of ozone via pulse corona discharge technology. With a maximum flow rate of 1 LPM and universal 100-240V input, it integrates easily with the Oxiti-01 oxygen concentrator or dry air supply for water treatment, lab research, and small-scale disinfection applications.

Download Brochure
small application ozone generator 1 gram
Back to: Ozone Systems
General
1 Model name Industrial Ozone Generators - Air-Cooled, Metal-Free Gas Path
2 Model number oziti_1g_100-240
3 Technology Corona Discharge
AmbientMetricImperial
4 Ambient temperature minimum 2 ℃ 36 ℉
5 Ambient temperature maximum 40 ℃ 104 ℉
6 Relative humidity maximum 92 %
GasMetricImperial
7 Minimum flow / minute 0.1 Liter 0.0 Gallon
8 Maximum flow / minute 1.0 Liter 0.3 Gallon
9 Minimum flow / hour 6.0 Liter 1.6 Gallon
10 Maximum flow / hour 60 Liter 16 Gallon
11 Pressure 0 kPa 0 PSI
12 Pressure 36 kPa 5 PSI
13 Gas quality Dried Air or Oxygen must be free from dust and oil.
14 Gas remark Oxygen from an oxygen concentrator Oxiti-01 or dry air. Oxygen from an oxygen concentrator Oxiti-01 or dry air.
ElectricalMetricImperial
15 Unit phase Ø voltage 100-240 Volt
16 Unit power consumption 26 Watts 0.03 HP
17 Wetted parts Kynar, Teflon, and Quartz materials.
Connections
18 Gas inlet barb fitting 6mm
Dimensions & weightMetricImperial
19 Dim. (w) x (d) x (h) 350 x 182 x 106 mm 13.8 x 7.2 x 4.2 inch
20 weight 2.6 Kg 5.7 lbs.
21 HS code 8543.70 8543.70
22 Shipping dim. (w)x(d)x(h) 56 x 37 x 22 cm 22 x 15 x 9 inch
23 Shipping weight 4 Kg 9 lbs.
Remarks
24 Other remarks
  • Ozone output is adjustable via a dial.

Dimensional drawing ozone generator 1-gram

ozone generator 1-gram dimensional drawing in mm

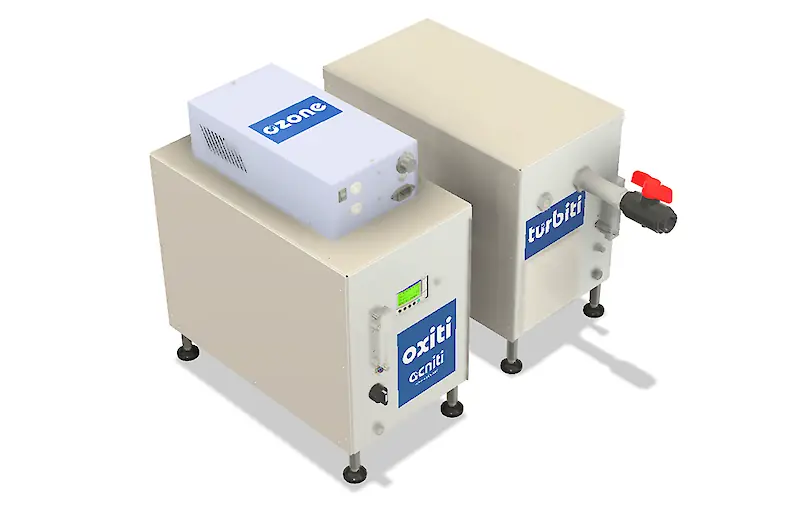

Easy integration of the 1-gram ozone generator with the Oxiti-01 and the Turbiti Fusion 808.

Integration oxiti-01 1-gram ozone generator and Turbiti Fusion 808
