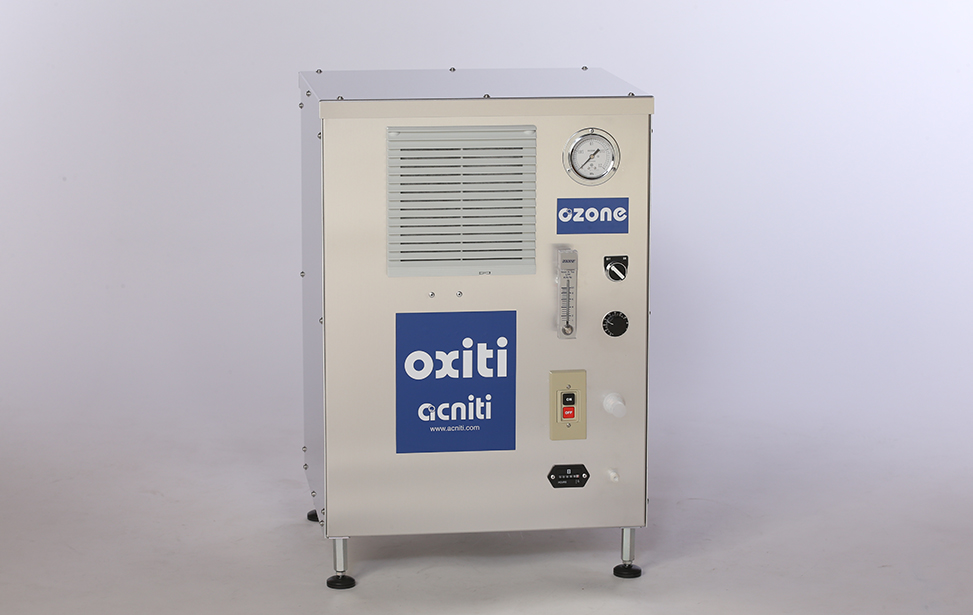

Oxiti Ozone PSA Oxygen Generator - 8 LPM, 20 g/h Ozone, 200V-50Hz

Oxiti Ozone System

The Oxiti Ozone is a compact PSA oxygen generator with a built-in ozone generator, delivering up to 8 LPM of high-purity oxygen and 20 g/h of ozone from a single 200V unit. Designed for aquaculture, pond water treatment, and industrial aeration where both oxygen enrichment and ozone disinfection are needed.

Download Brochure
Industrial ozone generator with PSA included
Back to: Oxiti Ozone System
General
1 Model name Oxiti Ozone Industrial PSA Ozone Generator - Integrated Oxygen Feed
2 Model number OXITI-08-O3-20G-200
3 GTIN 4570203880830
4 Technology PSA/Corona Discharge (O2 + O3)
AmbientMetricImperial
5 Ambient temperature minimum 10 ℃ 50 ℉
6 Ambient temperature maximum 40 ℃ 104 ℉
7 Relative humidity minimum 15 %
8 Relative humidity maximum 90 %
GasMetricImperial
9 Minimum flow / minute 2.0 Liter 0.5 Gallon
10 Maximum flow / minute 8.0 Liter 2.1 Gallon
11 Minimum flow / hour 120 Liter 32 Gallon
12 Maximum flow / hour 480 Liter 127 Gallon
13 Pressure 35 kPa 5 PSI
14 Gas quality 87% to 96% Oxygen
15 Gas remark ambient air ambient air
ElectricalMetricImperial
16 Unit phase Ø voltage 1 Ø 200 VAC 50 Hz
17 Unit power consumption 650 watts 0.87 HP
Connections
18 Gas inlet 10 mm push to connect fitting or 3/8" on request
Dimensions & weightMetricImperial
19 Dim. (w) x (d) x (h) 460 x 444 x 695 mm 18.1 x 17.5 x 27.4 inch
20 weight 33.5 Kg 73.9 lbs.
21 HS code 8421.39 8421.39
22 Shipping dim. (w)x(d)x(h) 62 x 54.5 x 760 cm 24 x 21 x 299 inch
23 Shipping weight 35 Kg 77 lbs.
Remarks
24 Other remarks
  • Altitude 21 degrees up to 1500 meter (5000 ft) without degradation, contact us for more information regarding 1,500 m to 4,000 m (5,000 - 13,000 ft)

  • Storage temperature from - 20 °C to 60 °C (0°F to 140 °F)

  • unprotected or inadequately ventilated environment or improper control power may cause damage to the oxygen concentrator and is not covered under warranty.

Back to: Oxiti Ozone System
