Oxiti Ozone PSA Oxygen Generator - 5 LPM, 12 g/h Ozone, 100V

Oxiti Ozone System

The Oxiti Ozone is a compact PSA oxygen generator with a built-in ozone generator, delivering up to 5 LPM of high-purity oxygen and 12 g/h of ozone from a single 100V unit. Designed for aquaculture, pond water treatment, and industrial aeration where both oxygen enrichment and ozone disinfection are needed.

Download Brochure

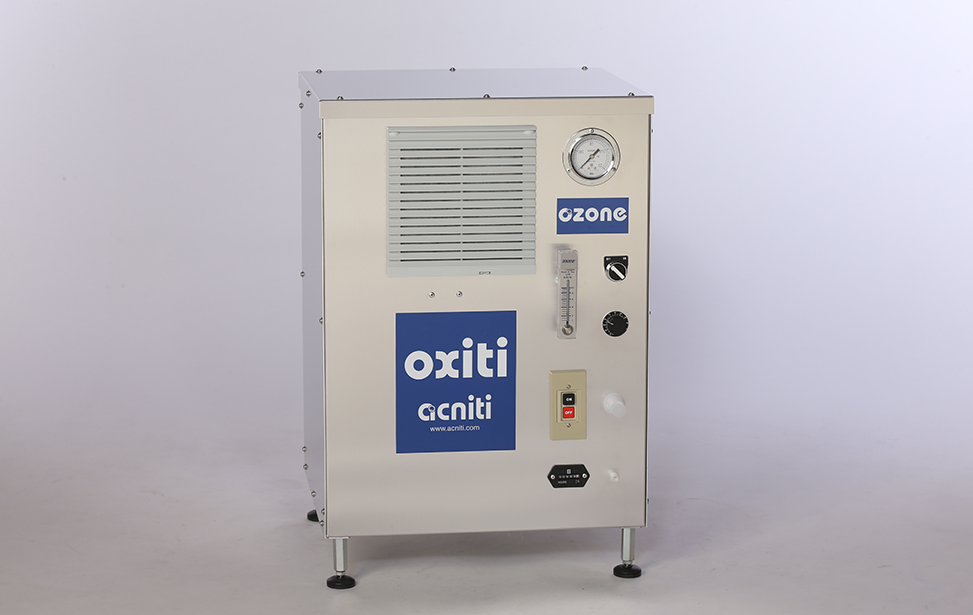

Industrial ozone generator
Back to: Oxiti Ozone System
General
1 Model name Oxiti Ozone Industrial PSA Ozone Generator - Integrated Oxygen Feed
2 Model number OXITI-05-O3-12G-100
3 Technology PSA/Corona Discharge (O2 + O3)
AmbientMetricImperial
4 Ambient temperature minimum 10 ℃ 50 ℉
5 Ambient temperature maximum 40 ℃ 104 ℉
6 Relative humidity minimum 15 %
7 Relative humidity maximum 90 %
GasMetricImperial
8 Minimum flow / minute 1.0 Liter 0.3 Gallon
9 Maximum flow / minute 5.0 Liter 1.3 Gallon
10 Minimum flow / hour 60 Liter 16 Gallon
11 Maximum flow / hour 300 Liter 79 Gallon
12 Pressure 103 kPa 15 PSI
13 Gas quality 87% to 96% Oxygen
14 Gas remark ambient air ambient air
ElectricalMetricImperial
15 Unit phase Ø voltage 1 Ø 100 VAC 50/60 Hz
16 Unit power consumption 500 watts 0.67 HP
Connections
17 Gas inlet 10 mm push to connect fitting or 6mm on request
Dimensions & weightMetricImperial
18 Dim. (w) x (d) x (h) 460 x 444 x 695 mm 18.1 x 17.5 x 27.4 inch
19 weight 33.5 Kg 73.9 lbs.
20 HS code 8421.39 8421.39
21 Shipping dim. (w)x(d)x(h) 62 x 54.5 x 760 cm 24 x 21 x 299 inch
22 Shipping weight 35 Kg 77 lbs.
Remarks
23 Other remarks
  • Altitude 21 degrees up to 1500 meter (5000 ft) without degradation, contact us for more information regarding 1,500 m to 4,000 m (5,000 - 13,000 ft)

  • Storage temperature from - 20 °C to 60 °C (0°F to 140 °F)

  • unprotected or inadequately ventilated environment or improper control power may cause damage to the oxygen concentrator and is not covered under warranty.
