Oxiti-08-100V / 60Hz PSA Industrial Oxygen Generator Specifications

Oxiti Industrial

Complete technical specifications for the Oxiti-08-100V PSA industrial oxygen generator for non-medical research applications. Delivers 2-8 LPM at 87-96% purity and 35 kPa pressure for aquaculture, pond aeration, and water treatment. Designed for Japanese 100V systems with robust performance in demanding industrial environments. Not for medical or patient care use.

Download Brochure

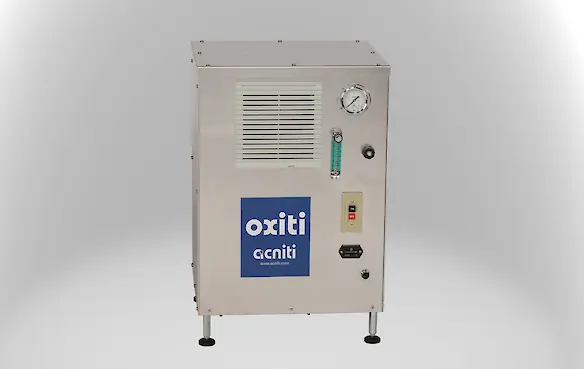

oxiti industrial oxygen concentrator
Back to: Oxiti Industrial
General
1 Model name Oxiti Industrial Oxygen Concentrator: Heavy-Duty PSA Generator
2 Model number Oxiti-08-100V / 60Hz
3 Technology PSA
AmbientMetricImperial
4 Ambient temperature minimum 10 ℃ 50 ℉
5 Ambient temperature maximum 40 ℃ 104 ℉
6 Relative humidity minimum 15 %
7 Relative humidity maximum 95 %
GasMetricImperial
8 Minimum flow / minute 2.0 Liter 0.5 Gallon
9 Maximum flow / minute 8.0 Liter 2.1 Gallon
10 Minimum flow / hour 120 Liter 32 Gallon
11 Maximum flow / hour 480 Liter 127 Gallon
12 Pressure 35 kPa 5 PSI
13 Gas quality 87% to 96% Oxygen
14 Gas remark ambient air ambient air
ElectricalMetricImperial
15 Unit phase Ø voltage 1 Ø 100 VAC 60 Hz or 50 Hz
16 Unit power consumption 555 watts 60 Hz or 435 watts 50 Hz 7450775.85 HP
Connections
17 Gas inlet 10 mm push to connect fitting or 3/8" on request
Dimensions & weightMetricImperial
18 Dim. (w) x (d) x (h) 480 x 460 x 690 mm 18.9 x 18.1 x 27.2 inch
19 weight 27 Kg 59.5 lbs.
20 Shipping dim. (w)x(d)x(h) 53 x 52 x 70 cm 21 x 20 x 28 inch
21 Shipping weight 30 Kg 66 lbs.
Remarks
22 Other remarks
  • Altitude 21 degrees up to 1500 meter (5000 ft) without degradation, contact us for more information regarding 1,500 m to 4,000 m (5,000 - 13,000 ft)

  • Storage temperature from - 20 °C to 60 °C (0°F to 140 °F)

  • unprotected or inadequately ventilated environment or improper control power may cause damage to the oxygen concentrator and is not covered under warranty.

Important Notice

This oxygen generator is designed for industrial, laboratory, and research applications only. Not intended for medical use or patient care. For industrial oxygen generation in aquaculture, water treatment, ozone generation, and laboratory applications.
