DescriptionMetricImperial

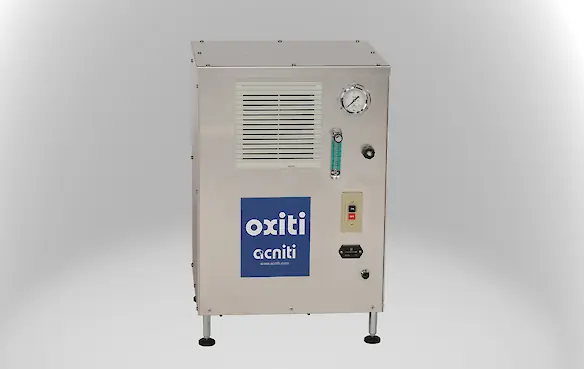

1 Model name industrial oxygen concentrator 8 LPM 200V industrial oxygen concentrator 8 LPM 200V
AmbientMetricImperial
2 Ambient temperature minimum 10 ℃ 50 ℉
3 Ambient temperature maximum 40 ℃ 104 ℉
4 Relative humidity minimum 15 % 15 %
5 Relative humidity maximum 95 % 95 %
GasMetricImperial
6 Minimum flow / minute 2.0 Liter 0.5 Gallon
7 Maximum flow / minute 8.0 Liter 2.1 Gallon
8 Minimum flow / hour 120 Liter 32 Gallon
9 Maximum flow / hour 480 Liter 127 Gallon
10 Pressure minimum 70 kPa 10 PSI
11 Pressure maximum 100 kPa 15 PSI
12 Gas quality 87% to 96% Oxygen 87% to 96% Oxygen
13 Gas remark ambient air ambient air
ElectricalMetricImperial
14 Unit phase Ø voltage 1 Ø 200 VAC 60 Hz or 50 Hz 1 Ø 200 VAC 60 Hz or 50 Hz
15 Unit power consumption 580 watts 60 Hz or 450 watts 50 Hz 580 watts 60 Hz or 450 watts 50 Hz
ConnectionsMetricImperial
16 Gas inlet 10 mm push to connect fitting or 3/8" on request 10 mm push to connect fitting or 3/8" on request
Dimensions & weightMetricImperial
17 Dim. (w) x (d) x (h) 460 x 444 x 695 mm 18.1 x 17.5 x 27.4 inch
18 weight 29.9 Kg 65.9 lbs.
19 Shipping dim. (w)x(d)x(h) 60 x 57 x 80 cm 24 x 22 x 31 inch
20 Shipping weight 32.9 Kg 73 lbs.
