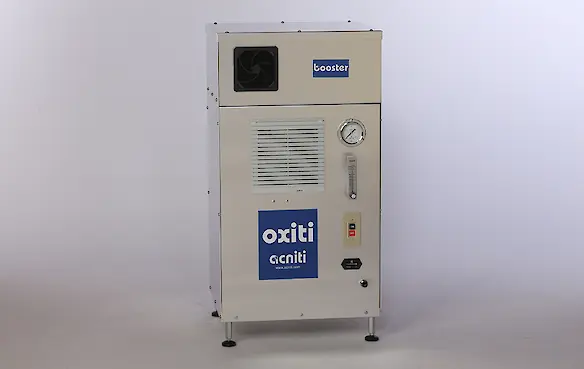

Oxiti Mini Booster 8 LPM PSA Oxygen Generator - 200V-50Hz Specs
Complete technical specifications for the Oxiti Mini Booster 8 LPM 200V-50Hz PSA industrial oxygen generator for non-medical applications. Delivers 2-8 LPM at 87-96% purity with boosted pressure of 35-140 kPa for aquaculture, pond aeration, and water treatment. Designed for Japanese 200V 50Hz systems. Not for medical or patient care use.
Back to: Oxiti Booster
| General | |||
|---|---|---|---|
| 1 | Model name | High-Pressure PSA Oxygen Generator for 24/7 Industrial Use | |
| 2 | Model number | OXITI-08-mini-booster-200-50Hz | |
| 3 | GTIN | 4570203880588 | |
| 4 | Technology | PSA | |
| Ambient | Metric | Imperial | |
| 5 | Ambient temperature minimum | 10 ℃ | 50 ℉ |
| 6 | Ambient temperature maximum | 40 ℃ | 104 ℉ |
| 7 | Relative humidity minimum | 15 % | |
| 8 | Relative humidity maximum | 95 % | |
| Gas | Metric | Imperial | |
| 9 | Minimum flow / minute | 2.0 Liter | 0.5 Gallon |
| 10 | Maximum flow / minute | 8.0 Liter | 2.1 Gallon |
| 11 | Minimum flow / hour | 120 Liter | 32 Gallon |
| 12 | Maximum flow / hour | 480 Liter | 127 Gallon |
| 13 | Pressure minimum | 35 kPa | 5 PSI |
| 14 | Pressure maximum | 140 kPa | 20 PSI |
| 15 | Gas quality | 87% to 96% Oxygen | |
| 16 | Gas remark | ambient air | ambient air |
| Electrical | Metric | Imperial | |
| 17 | Unit phase Ø voltage | 1 Ø 200 VAC 50 Hz | |
| 18 | Unit power consumption | 620 watts 50 Hz | 83.21 HP |
| Connections | |||
| 19 | Gas inlet | 10 mm push to connect fitting or 3/8" on request | |
| Dimensions & weight | Metric | Imperial | |
| 20 | Dim. (w) x (d) x (h) | 480 x 460 x 690 mm | 18.9 x 18.1 x 27.2 inch |
| 21 | weight | 30 Kg | 66.1 lbs. |
| 22 | HS code | 8421.39 | 8421.39 |
| 23 | Shipping dim. (w)x(d)x(h) | 53 x 52 x 70 cm | 21 x 20 x 28 inch |
| 24 | Shipping weight | 33 Kg | 73 lbs. |
Important Notice
This oxygen generator is designed for industrial, laboratory, and research applications only. Not intended for medical use or patient care. For industrial oxygen generation in aquaculture, water treatment, ozone generation, and laboratory applications.
Outline drawing:
