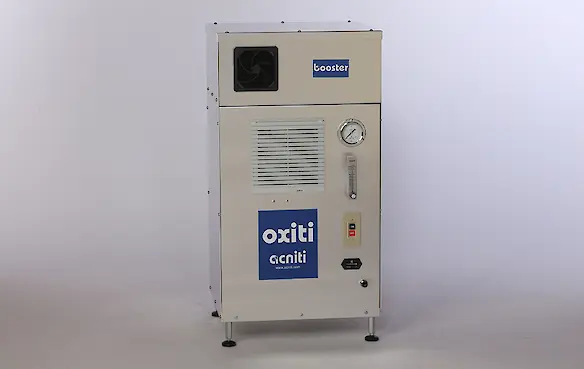

Industrial PSA Oxygen Generator 8 LPM 230V Specifications
The Oxiti Booster 8L 230V is an industrial PSA oxygen generator delivering 2-8 LPM oxygen at 87-96% purity with integrated pressure booster (35-400 kPa). Designed for water treatment, pond aeration, aquaculture, and fish cultivation applications. Complete technical specifications for the European and Asian markets (230V, 50/60Hz). Not for medical or patient care use.
Back to: Oxiti Booster
| General | |||
|---|---|---|---|
| 1 | Model name | High-Pressure PSA Oxygen Generator for 24/7 Industrial Use | |
| 2 | Model number | OXITI-08-booster-230V | |
| 3 | GTIN | 4570203880854 | |
| 4 | Technology | PSA | |
| Ambient | Metric | Imperial | |
| 5 | Ambient temperature minimum | 10 ℃ | 50 ℉ |
| 6 | Ambient temperature maximum | 40 ℃ | 104 ℉ |
| 7 | Relative humidity minimum | 15 % | |
| 8 | Relative humidity maximum | 95 % | |
| Gas | Metric | Imperial | |
| 9 | Minimum flow / minute | 2.0 Liter | 0.5 Gallon |
| 10 | Maximum flow / minute | 8.0 Liter | 2.1 Gallon |
| 11 | Minimum flow / hour | 120 Liter | 32 Gallon |
| 12 | Maximum flow / hour | 480 Liter | 127 Gallon |
| 13 | Pressure minimum | 35 kPa | 5 PSI |
| 14 | Pressure maximum | 400 kPa | 58 PSI |
| 15 | Gas quality | 87% to 96% Oxygen | |
| 16 | Gas remark | ambient air | ambient air |
| Electrical | Metric | Imperial | |
| 17 | Unit phase Ø voltage | 1 Ø 230 VAC 50Hz or 60 Hz | |
| 18 | Unit power consumption | 650 watts | 0.87 HP |
| Connections | |||
| 19 | Gas inlet | 10 mm push to connect fitting or 3/8" on request | |
| Dimensions & weight | Metric | Imperial | |
| 20 | Dim. (w) x (d) x (h) | 480 x 460 x 690 mm | 18.9 x 18.1 x 27.2 inch |
| 21 | weight | 36 Kg | 79.4 lbs. |
| 22 | HS code | 8421.39 | 8421.39 |
| 23 | Shipping dim. (w)x(d)x(h) | 53 x 52 x 70 cm | 21 x 20 x 28 inch |
| 24 | Shipping weight | 39 Kg | 86 lbs. |
Important Notice
This oxygen generator is designed for industrial, laboratory, and research applications only. Not intended for medical use or patient care. For industrial oxygen generation in aquaculture, water treatment, ozone generation, and laboratory applications.
Outline drawing:
