Oxiti Booster 5L 200V-50/60Hz Industrial Oxygen Generator Specifications

Oxiti Booster

Complete technical specifications for the Oxiti Booster 5 LPM 200V-50/60Hz PSA industrial oxygen generator for non-medical applications. Delivers 1-5 LPM at 87-96% purity with high boosted pressure of 35-400 kPa for aquaculture, pond aeration, and water treatment. Designed for Japanese 200V systems. Not for medical or patient care use.

Download Brochure

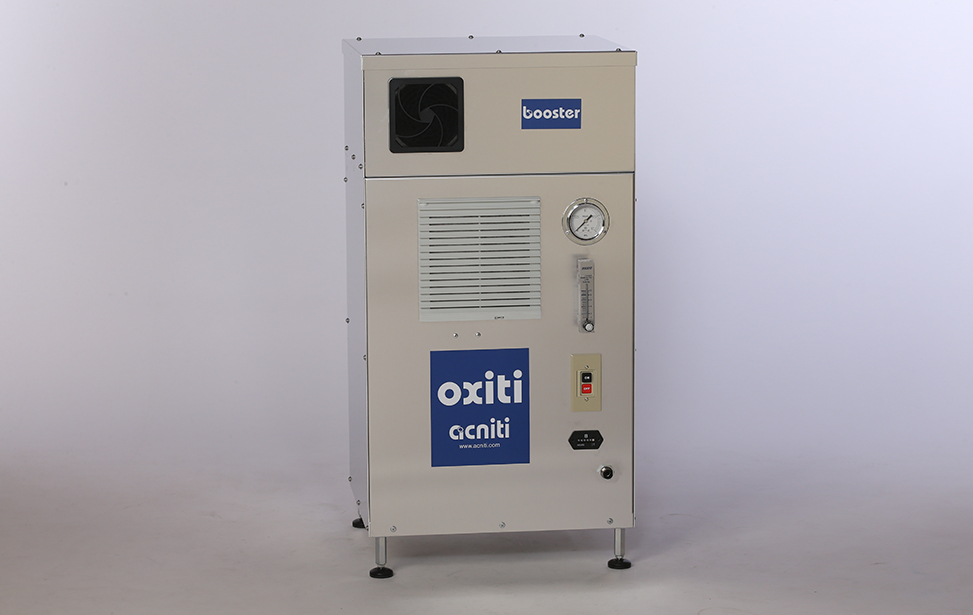

industrial oxygen concentrator with high power booster
Back to: Oxiti Booster
General
1 Model name High-Pressure PSA Oxygen Generator for 24/7 Industrial Use
2 Model number OXITI-05-booster-200V-50_60Hz
3 GTIN 4570203880977
4 Technology PSA
AmbientMetricImperial
5 Ambient temperature minimum 10 ℃ 50 ℉
6 Ambient temperature maximum 40 ℃ 104 ℉
7 Relative humidity minimum 15 %
8 Relative humidity maximum 95 %
GasMetricImperial
9 Minimum flow / minute 1.0 Liter 0.3 Gallon
10 Maximum flow / minute 5.0 Liter 1.3 Gallon
11 Minimum flow / hour 60 Liter 16 Gallon
12 Maximum flow / hour 300 Liter 79 Gallon
13 Pressure minimum 35 kPa 5 PSI
14 Pressure maximum 400 kPa 58 PSI
15 Gas quality 87% to 96% Oxygen
16 Gas remark ambient air ambient air
ElectricalMetricImperial
17 Unit phase Ø voltage 1 Ø 200 VAC 50Hz or 60 Hz
18 Unit power consumption 1100 watts 50 Hz or 1320 watts 60 Hz 147579632.64 HP
Connections
19 Gas inlet 10 mm push to connect fitting or 3/8" on request
Dimensions & weightMetricImperial
20 Dim. (w) x (d) x (h) 480 x 460 x 690 mm 18.9 x 18.1 x 27.2 inch
21 weight 36 Kg 79.4 lbs.
22 HS code 8421.39 8421.39
23 Shipping dim. (w)x(d)x(h) 53 x 52 x 70 cm 21 x 20 x 28 inch
24 Shipping weight 39 Kg 86 lbs.

Important Notice

This oxygen generator is designed for industrial, laboratory, and research applications only. Not intended for medical use or patient care. For industrial oxygen generation in aquaculture, water treatment, ozone generation, and laboratory applications.

Outline drawing:
