Nanobubble workhorse

The turbiti  nanobubble generator is a first-class workhorse ultrafine bubble generator. It can be placed in difficult environments. The turbiti has no moving parts, so maintenance is minimal. The turbiti mixer comes in a stainless-steel box with standard durable male connectors for the water connections. The gas connection is a standard push to connect fitting. The gas connection is protected with a high-quality one-way valve, which protects your oxygen concentrator and avoids water in your gas hose. The turbiti can handle water with particles up to 2 mm.

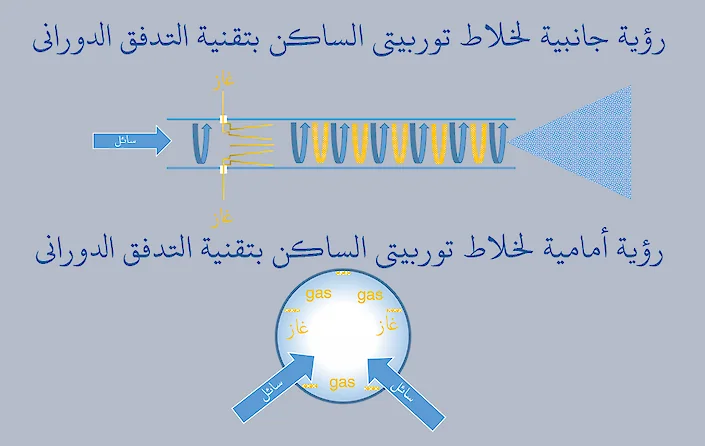

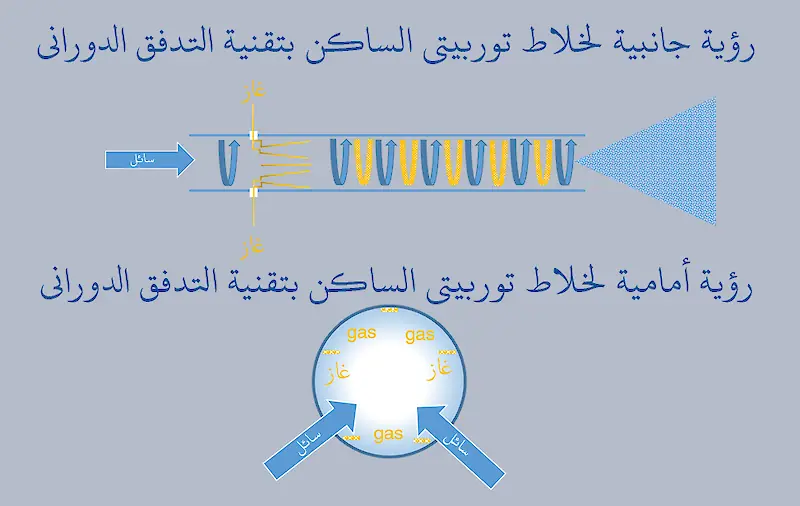

Turbiti enhanced static mixer technology

The static mixer has its origin from mixing two liquids, the first patent for a static mixer was filed in 1965. Instead of mixing two liquids, there is also the possibility of mixing a liquid and a gas. The benefits of the static mixers is that they can treat large volumes of water at once. They are not sensitive to clogging. The acniti technology is based on this principle. Rather than a normal static mixer, acniti has implemented their proprietary swirl flow technology. The swirl flow technology beats up the water and gas, and due to the available forces in the mixer, nanobubbles are created. In the schematic on the left, you can get a visualization of how the technology works. The turbiti has an enhanced dissolved aeration performance, dissolving gasses like oxygen efficient and in large quantities in the water.

One of the main benefits of this mixer is the low head required for nanobubble generation. A low head means that much less energy is required to be compared to the high head nanobubble generators which often require 5 times more pressure.



Nanobubble applications

This unit is suitable for water treatment applications, healthy drink water treatment for livestock i.e. chicken, cattle, pigs and poultry. A large industry using the nanobubble aeration mixers is the horticulture greenhouse production cultivating products such as tomatoes, bell peppers, carnation, roses, lettuce and strawberries. Apart from sweet water applications, the unit is also suitable for saltwater applications such as shrimp and salmon cultivation. We recommend using this product in combination with our industrial oxygen concentrator. Investing in both the oxygen concentrator and the turbiti nanobubble mixer, gives you peace of mind and many years of trouble-free ultrafine bubble generation.



Dealers and partners

The turbiti OEM series gives dealers and partners the opportunity to implement the turbiti into their own equipment and sell nanobubbles generator equipment under their own brand name. This product is only for dealers and partner of acniti, that have a license agreement and commit to buy certain quantities. When you are interested in becoming an Acniti partner, contact us for your geographic location and market. Customers that want to buy direct from acniti, please have a look at our other turbiti products:

Turbiti nanobubble mixer

  • easy to install
  • ready to connect to many different standard pumps
  • saltwater version effectively used in the ocean and saltwater applications
  • aeration of lakes and ponds with algae contamination
  • nanobubble wastewater aeration
  • fish cultivation
  • agriculture production
  • nanobubble drinking water for animals, chickens pigs, cows
  • Turbiti produces billions of nanobubbles

Model

specifications

  • Model nameTurbiti 737
    Model numberturbiti_box_737_O2_SUS304
    Spec sheetTurbiti 737
    LiquidMetricImperial
    Minimum flow / minute 100 Liter26 Gallon
    Maximum flow / minute 250 Liter66 Gallon
    Minimum flow / hour 6.0 M3211.9 CF
    Maximum flow / hour 15 M3530 CF
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
    Recommended inlet filter(s)RF200
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Flow / minute8.0 Liter2.1 Gallon
    Flow / hour480 Liter127 Gallon
    Pressure minimum 40 kPa6 PSI
    Pressure maximum 350 kPa51 PSI
    Gas qualityNo corrosive gasses: suitable for O2, air, CO2, N2
    Gas remarkThe mentioned pressures are recommended pressures for bubble generation. The product itself can withstand pressures up to 400 kPa.
    ElectricalMetricImperial
    Unit power consumptionNo pump included with this product. Estimated power consumption 750-1000 watts.
    Wetted partsnylon based resins, silicone tube, PPS, EPDM
    Pump modelThis product works both with submersible pumps and single stage centrifugal pumps.
    Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
    ControlNo automatic operation
    ConnectionsMetricImperial
    Water inletR 2" male connector (50 mm)
    Water outletR 1" male connector (25 mm)
    Gas inlet10mm standard push-to-connect fitting, 3/8 on request
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)405 x 100 x 130 mm15.9 x 3.9 x 5.1 inch
    weight2.8 Kg6.2 lbs.
    Shipping dim. (w)x(d)x(h)12 x 34 x 12 cm5 x 13 x 5 inch
    Shipping weight5 Kg11 lbs.
    • The turbiti UFB mixer works normally well with low head pumps using 750 to 1000 watt of power. (ask us for more details)
  • Model nameTurbiti 707 nano bubble OEM
    Model numberturbiti_oem_717-O2
    Spec sheetTurbiti 707 nano bubble OEM
    LiquidMetricImperial
    Minimum flow / minute 50 Hz4.0 Liter1.1 Gallon
    Maximum flow / minute 50 Hz12 Liter3 Gallon
    Minimum flow / minute 60 Hz4.0 Liter1.1 Gallon
    Maximum flow / minute 60 Hz12 Liter3 Gallon
    Minimum flow / hour 50 Hz240 Liter63 Gallon
    Maximum flow / hour 50 Hz720 Liter190 Gallon
    Minimum flow / hour 60 Hz240 Liter63 Gallon
    Maximum flow / hour 60 Hz720 Liter190 Gallon
    water temperature minimum-20 ℃-4 ℉
    water temperature maximum50 ℃122 ℉
    Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
    Recommended inlet filter(s)RF100 Single
    AmbientMetricImperial
    Ambient temperature minimum-20 ℃-4 ℉
    Ambient temperature maximum50 ℃122 ℉
    Relative humidity minimum0 %0 %
    Relative humidity maximum100 %100 %
    GasMetricImperial
    Minimum flow / minute0.2 Liter0.1 Gallon
    Maximum flow / minute0.6 Liter0.2 Gallon
    Minimum flow / hour12 Liter3.2 Gallon
    Maximum flow / hour36 Liter9.5 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 400 kPa58 PSI
    Gas qualityNo corrosive gasses: suitable for O2, air, CO2, N2
    ElectricalMetricImperial
    Unit power consumptionNo pump included with this product. Estimated power consumption 200-850 watts.
    Wetted partsnylon based resins
    Pump modelThis product works both with submersible pumps and single stage centrifugal pumps.
    Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
    ControlNo control
    • Model nameTurbiti 727
      Model numberturbiti_box_727_SUS304
      Spec sheetTurbiti 727
      LiquidMetricImperial
      Minimum flow / minute 50 Liter13 Gallon
      Maximum flow / minute 100 Liter26 Gallon
      Minimum flow / hour 3.0 M3105.9 CF
      Maximum flow / hour 6.0 M3211.9 CF
      water temperature minimum-20 ℃-4 ℉
      water temperature maximum50 ℃122 ℉
      Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
      Recommended inlet filter(s)RF100 Triplex
      AmbientMetricImperial
      Ambient temperature minimum-20 ℃-4 ℉
      Ambient temperature maximum50 ℃122 ℉
      Relative humidity minimum0 %0 %
      Relative humidity maximum100 %100 %
      GasMetricImperial
      Flow / minute5.0 Liter1.3 Gallon
      Flow / hour300 Liter79 Gallon
      Pressure minimum 50 kPa7 PSI
      Pressure maximum 350 kPa51 PSI
      Gas qualityNo corrosive gasses: suitable for O2, air, CO2, N2
      ElectricalMetricImperial
      Unit power consumptionNo pump included with this product. Estimated power consumption 100-250 watts.
      Wetted partsAcrylic Styrene Acrylonitrile, PVC, EPDM
      Pump modelThis product works both with submersible pumps and single stage centrifugal pumps.
      Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
      ControlNo automatic operation
      ConnectionsMetricImperial
      Water inletFlange 25 mm or 1 inch threaded connection
      Water outletFlange 13 mm or 1/2 inch threaded connection
      Gas inlet10 mm push to connect fitting or 6mm for ozone
      Dimensions & weightMetricImperial
      Dim. (w) x (d) x (h)112 x 208 x 110 mm4.4 x 8.2 x 4.3 inch
      weight2.8 Kg6.2 lbs.
      Shipping dim. (w)x(d)x(h)20 x 45 x 20 cm8 x 18 x 8 inch
      Shipping weight5 Kg11 lbs.
      • Model nameTurbiti 737 saltwater
        Model numberturbiti_box_737_O2_SUS316
        Spec sheetTurbiti 737 saltwater
        LiquidMetricImperial
        Minimum flow / minute 100 Liter26 Gallon
        Maximum flow / minute 250 Liter66 Gallon
        Minimum flow / hour 6.0 M3211.9 CF
        Maximum flow / hour 15 M3530 CF
        water temperature minimum-20 ℃-4 ℉
        water temperature maximum50 ℃122 ℉
        Strainer availability and sizeNo strainer, strainer required when particles larger than 1 or 2 mm.
        Recommended inlet filter(s)RF200
        AmbientMetricImperial
        Ambient temperature minimum-20 ℃-4 ℉
        Ambient temperature maximum50 ℃122 ℉
        Relative humidity minimum0 %0 %
        Relative humidity maximum100 %100 %
        GasMetricImperial
        Flow / minute8.0 Liter2.1 Gallon
        Flow / hour480 Liter127 Gallon
        Pressure minimum 40 kPa6 PSI
        Pressure maximum 200 kPa29 PSI
        Gas qualityNo corrosive gasses: suitable for O2, air, CO2, N2
        Gas remarkThe mentioned pressures are recommended pressures for bubble generation. The product itself can withstand pressures up to 500 kPa.
        ElectricalMetricImperial
        Unit power consumptionNo pump included with this product. Estimated power consumption 750-1000 watts.
        Wetted partsnylon based resins, SUS316, FKM Viton, silicon tube
        Pump modelThis product works both with submersible pumps and single stage centrifugal pumps.
        Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
        ControlNo control
        ConnectionsMetricImperial
        Water inlet2" male connector (50 mm)
        Water outlet1" male connector (25 mm)
        Gas inlet10 mm push to connect fitting
        Dimensions & weightMetricImperial
        Dim. (w) x (d) x (h)405 x 100 x 130 mm15.9 x 3.9 x 5.1 inch
        weight2.8 Kg6.2 lbs.
        Shipping dim. (w)x(d)x(h)36 x 50 x 20 cm14 x 20 x 8 inch
        Shipping weight5 Kg11 lbs.
        • The turbiti UFB mixer works normally well with low head pumps using 750 to 1000 watt of power. (ask us for more details)
      • Model nameTurbiti 747
        Model numberturbiti_box_747_SUS304
        Spec sheetTurbiti 747
        LiquidMetricImperial
        Minimum flow / minute 400 Liter106 Gallon
        Maximum flow / minute 500 Liter132 Gallon
        Minimum flow / hour 24 M3848 CF
        Maximum flow / hour 30 M31,059 CF
        water temperature minimum-20 ℃-4 ℉
        water temperature maximum50 ℃122 ℉
        Recommended inlet filter(s)RF400
        AmbientMetricImperial
        Ambient temperature minimum-20 ℃-4 ℉
        Ambient temperature maximum50 ℃122 ℉
        Relative humidity minimum0 %0 %
        Relative humidity maximum100 %100 %
        GasMetricImperial
        Minimum flow / minute14 Liter3.7 Gallon
        Maximum flow / minute16 Liter4.2 Gallon
        Minimum flow / hour840 Liter222 Gallon
        Maximum flow / hour960 Liter254 Gallon
        Pressure minimum 50 kPa7 PSI
        Pressure maximum 350 kPa51 PSI
        Gas qualityAir, CO2, N2, O2 including ozone on request.
        Gas remark..
        ElectricalMetricImperial
        Unit power consumptionNo pump included with this product. Estimated power consumption 1000-2000 watts.
        Wetted partsAcrylic Styrene Acrylonitrile, PVC, EPDM
        ConnectionsMetricImperial
        Water inlet50 mm or 2 inch threaded connection
        Water outlet40 mm or 1.5 inch threaded connection
        Gas inlet10 mm push to connect fitting or 6mm for ozone
        Dimensions & weightMetricImperial
        Dim. (w) x (d) x (h)166 x 540 x 166 mm6.5 x 21.3 x 6.5 inch
        weight4.8 Kg10.6 lbs.
        Shipping dim. (w)x(d)x(h)24 x 55 x 24 cm9 x 22 x 9 inch
        Shipping weight6 Kg13 lbs.
