DescriptionMetricImperial

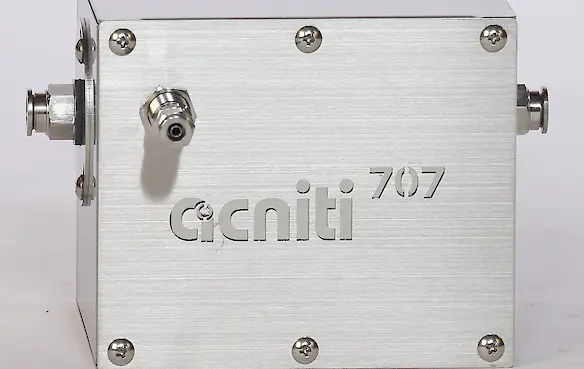

1 Model name Turbiti 707 Turbiti 707
2 Model number turbiti_oem_707-O2 turbiti_oem_707-O2
LiquidMetricImperial
3 Minimum flow / minute 50 Hz 4.0 Liter 1.1 Gallon
4 Maximum flow / minute 50 Hz 12 Liter 3.2 Gallon
5 Minimum flow / minute 60 Hz 4.0 Liter 1.1 Gallon
6 Maximum flow / minute 60 Hz 12 Liter 3.2 Gallon
7 Minimum flow / hour 50 Hz 240 Liter 63 Gallon
8 Maximum flow / hour 50 Hz 720 Liter 190 Gallon
9 Minimum flow / hour 60 Hz 240 Liter 63 Gallon
10 Maximum flow / hour 60 Hz 720 Liter 190 Gallon
11 water temperature minimum -20 ℃ -4 ℉
12 water temperature maximum 50 ℃ 122 ℉
13 Strainer availability and size No strainer, strainer required when particles larger than 1 or 2 mm. No strainer, strainer required when particles larger than 1 or 2 mm.
14 Recommended inlet filter(s) RF100 Single
 RF100 Single
AmbientMetricImperial
15 Ambient temperature minimum -20 ℃ -4 ℉
16 Ambient temperature maximum 50 ℃ 122 ℉
17 Relative humidity minimum 0 % 0 %
18 Relative humidity maximum 100 % 100 %
GasMetricImperial
19 Minimum flow / minute 0.2 Liter 0.1 Gallon
20 Maximum flow / minute 0.6 Liter 0.2 Gallon
21 Minimum flow / hour 12 Liter 3.2 Gallon
22 Maximum flow / hour 36 Liter 9.5 Gallon
23 Pressure minimum 50 kPa 7 PSI
24 Pressure maximum 400 kPa 58 PSI
25 Gas quality No corrosive gasses: suitable for O2, air, CO2, N2 No corrosive gasses: suitable for O2, air, CO2, N2
ElectricalMetricImperial
26 Unit power consumption No pump included with this product. Estimated power consumption 200-850 watts. No pump included with this product. Estimated power consumption 200-850 watts.
27 Wetted parts nylon based resins nylon based resins
28 Pump model This product works both with submersible pumps and single stage centrifugal pumps. This product works both with submersible pumps and single stage centrifugal pumps.
29 Pump pressure setting This product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details). This product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
30 Control No control No control
Pump
31 @option Grundfos CM1-4
32 @option Aquavar e-ABII
ConnectionsMetricImperial
33 Water inlet 10mm or 3/8" 10mm or 3/8"
34 Water outlet 10mm or 3/8" 10mm or 3/8"
35 Gas inlet 6mm or 1/4" 6mm or 1/4"
Dimensions & weightMetricImperial
36 Dim. (w) x (d) x (h) 120 x 180 x 140 mm 4.7 x 7.1 x 5.5 inch
37 weight 67 Kg 147.7 lbs.
38 Shipping dim. (w)x(d)x(h) 16 x 33 x 16 cm 6 x 13 x 6 inch
39 Shipping weight 2 Kg 4 lbs.
Remarks
40 Other remarks
