Hammer-rotation

The microStar uses a unique concept for the generation of nanobubbles, which is called hammer-rotation. The hammer-rotation concept of the microStar uses the least amount of energy in the industry to generate nanobubbles. The microStar releases gas in a tube and has rotating hammers inside the tube which crushes the gas into nanobubbles.

No turbulence

Another unique feature of this unit is that it does not generate any turbulence or strong movement in the water, compared to nanobubble generators that use a pump. This makes the microStar the perfect nanobubble generator for projects where high concentrations of gas and nanobubbles are needed and turbulence or strong flows in the water should be avoided. Think of projects like washing eggs to remove bacteria or bacteria bed filters which should not be disturbed but require adequate amounts of gas.

Contact us for more details about this unique product. Currently, we have 3 size available. The smallest unit is ideally suited for research purposes, the two larger units can be used for production purposes.

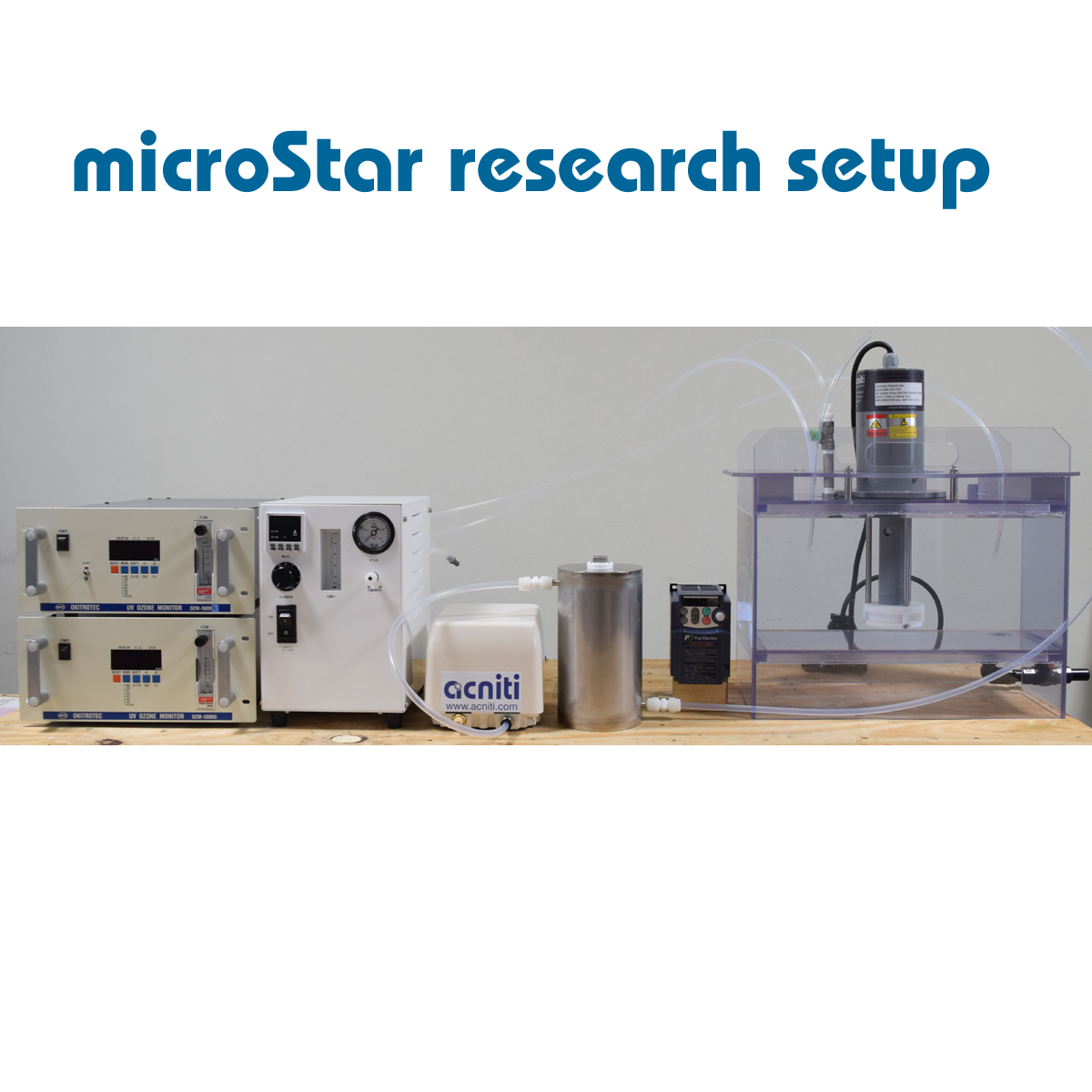

إعداد اختبارات Microstar باستخدام مولد الأوزون وأجهزة استشعار الأوزون.

microStar Ozone

  • Strong in dissolving high concentratrations of ozone
  • Optimized for the creation of ozone nanobubbles
  • Excellent research ultrafine bubble tool
  • creating no turbulence in the water
  • Proven track record in the oyster shell industry
  • Suitable for removing external infections with norovirus, legionella, lysteria and salmonella in live animals.
  • Motor life expectancy 80.000 hours

Model

specifications

  • Model namemicroStar FS302AC-SW1
    Model numberFS302AC-SW1
    Spec sheetmicroStar FS302AC-SW1
    GasMetricImperial
    Minimum flow / minute0.5 Liter0.1 Gallon
    Maximum flow / minute1.0 Liter0.3 Gallon
    Minimum flow / hour30 Liter7.9 Gallon
    Maximum flow / hour60 Liter16 Gallon
    Pressure minimum 50 kPa7 PSI
    Pressure maximum 200 kPa29 PSI
    Gas qualityO2, O3, CO2, Air, N2
    ElectricalMetricImperial
    Unit phase Ø voltage3 Ø 200/220 or 3 Ø 100 / 115
    Unit power consumption30 watts
    ControlFrequency Drive
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)152 x 152 x 380 mm6.0 x 6.0 x 15.0 inch
    weight6.3 Kg13.9 lbs.
    Shipping dim. (w)x(d)x(h)54 x 48 x 28 cm21 x 19 x 11 inch
    Shipping weight19 Kg42 lbs.
    • Acniti provides a presetup frequency drive and transformer to convert to the local electricity network. The units are a plug and plays.
    • Seawater use possible
  • Model namemicroStar FS400AC-1
    Model numberFS400AC-1
    Spec sheetmicroStar FS400AC-1
    LiquidMetricImperial
    Flow / minute 56 Liter15 Gallon
    Flow / hour 3.4 M3118.7 CF
    GasMetricImperial
    Minimum flow / minute0.0 M30.6 CF
    Maximum flow / minute0 M33.5 CF
    Minimum flow / hour1.1 M338 CF
    Maximum flow / hour6.0 M3212 CF
    Gas qualityO2, O3, CO2, Air, N2
    ElectricalMetricImperial
    Unit phase Ø voltage3 Ø 200/220 VAC
    Unit power consumption400 watts
    ControlFrequency Drive
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)270 x 270 x 672 mm10.6 x 10.6 x 26.5 inch
    weight17 Kg37.5 lbs.
    Shipping dim. (w)x(d)x(h)40 x 40 x 90 cm16 x 16 x 35 inch
    Shipping weight20 Kg44 lbs.
  • Model namemicrostar FS700AC-1
    Model numberFS700AC-1
    Spec sheetmicrostar FS700AC-1
    LiquidMetricImperial
    Flow / minute 100 Liter26 Gallon
    Flow / hour 6.0 M3211.9 CF
    GasMetricImperial
    Minimum flow / minute0.1 M33.5 CF
    Maximum flow / minute0 M35.3 CF
    Minimum flow / hour6.0 M3212 CF
    Maximum flow / hour9.0 M3318 CF
    ElectricalMetricImperial
    Unit phase Ø voltage3 Ø 200/220 VAC
    Unit power consumption750 watts
    ControlFrequency Drive
    Dimensions & weightMetricImperial
    Dim. (w) x (d) x (h)230 x 230 x 695 mm9.1 x 9.1 x 27.4 inch
    weight25 Kg55.1 lbs.
    Shipping dim. (w)x(d)x(h)90 x 50 x 50 cm35 x 20 x 20 inch
    Shipping weight32 Kg71 lbs.
