Slideshow Items

  • nanobubbles

The Swim Puriti system consists of two components. The Swim Puriti unit and a commercial rated oxygen concentrator which produces up to 95% pure oxygen out of the air.

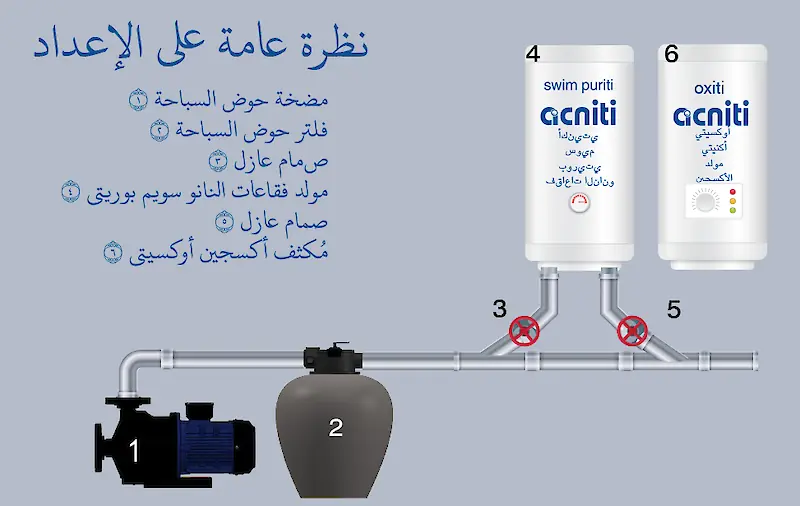

The Swim Puriti can easily be adapted to an existing or new recirculation system in swimming pools. A by-pass loop is created right after the pool or spa filter and heater. Using PVC plumbing. The injection point of the oxygen is directed downstream after the pool heater on the final return line back to the pool.



The Swim Puriti is ozone ready! and at a later date it can easily be expanded with an ozone generator, without having to re-plumb the system. With the proper ozone system, it will adapt in-between the oxygen concentrator and the Swim Puriti.



Swimming pool: Swim puriti O2 nanobubble mixer

  • When oxygen is combined with ozone, it greatly increases the disinfecting and oxidation potential
  • Breakdown of chloramine odors and other organic materials
  • Reduces the amount of pH correction chemicals
  • Provides enriched air quality
  • Greatly reduces the use of traditional pool and spa chemicals by 50 to 100%
  • Ozone delivers up to 3200 times stronger disinfection and Oxidation than Chlorine
  • Provides a safer and more natural swimming environment
  • Soft and silky skin upon leaving the pool or spa
  • Great for people with hypoallergenic skin issues
  • No chlorine smell
  • Experience crystal clear swim water

Model

specifications

Model nameSwim puriti 737 O2 nano bubble
Model numberturbiti_swim_puriti_737-O2
LiquidMetricImperial
Minimum flow / minute 100 Liter26 Gallon
Maximum flow / minute 250 Liter66 Gallon
Minimum flow / hour 6.0 M3211.9 CF
Maximum flow / hour 15 M3530 CF
water temperature minimum-20 ℃-4 ℉
water temperature maximum50 ℃122 ℉
Strainer availability and sizeNo strainer, particles up to 2 mm
Recommended inlet filter(s)RF200
AmbientMetricImperial
Ambient temperature minimum-20 ℃-4 ℉
Ambient temperature maximum50 ℃122 ℉
Relative humidity minimum0 %0 %
Relative humidity maximum100 %100 %
GasMetricImperial
Flow / minute8.0 Liter2.1 Gallon
Flow / hour480 Liter127 Gallon
Pressure minimum 40 kPa6 PSI
Pressure maximum 350 kPa51 PSI
Gas qualityOxygen for optimal results
Gas remarkThe mentioned pressures are recommended pressures for bubble generation. The product itself can withstand pressures up to 500 kPa.
ElectricalMetricImperial
Unit power consumptionNo pump included with this product. Estimated power consumption 750-1000 watts.
Wetted partsnylon based resins, PVC, EPDM rubber
Pump modelEasy to integrate with existing low head pool pumps.
Pump pressure settingThis product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
ControlManual by pressure gauche
ConnectionsMetricImperial
Water inletRigid RC 2" female coupling with thread
Water outletrigid 1" female coupling with thread
Gas inlet10 mm push to connect fitting or 3/8" on request
Dimensions & weightMetricImperial
Dim. (w) x (d) x (h)644 x 200 x 1040 mm25.4 x 7.9 x 40.9 inch
weight26.5 Kg58.4 lbs.
Shipping dim. (w)x(d)x(h)67 x 37 x 107 cm26 x 15 x 42 inch
Shipping weight35 Kg77 lbs.
  • Easy to integrate with existing swimming pool pumps
