DescriptionMetricImperial

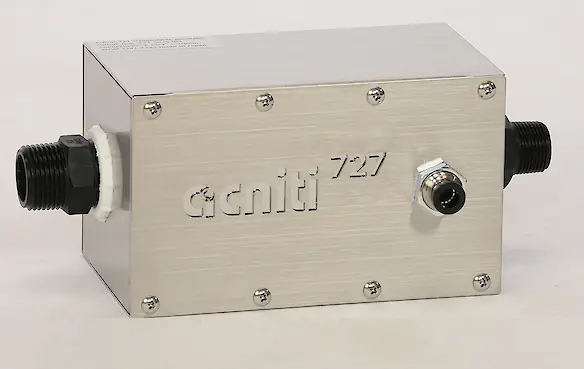

1 Model name Turbiti 727 Turbiti 727
2 Model number turbiti_box_727_SUS304 turbiti_box_727_SUS304
LiquidMetricImperial
3 Minimum flow / minute 50 Liter 13 Gallon
4 Maximum flow / minute 100 Liter 26 Gallon
5 Minimum flow / hour 3.0 M3 105.9 CF
6 Maximum flow / hour 6.0 M3 211.9 CF
7 water temperature minimum -20 ℃ -4 ℉
8 water temperature maximum 50 ℃ 122 ℉
9 Strainer availability and size No strainer, strainer required when particles larger than 1 or 2 mm. No strainer, strainer required when particles larger than 1 or 2 mm.
10 Recommended inlet filter(s) RF100 Triplex
 RF100 Triplex
AmbientMetricImperial
11 Ambient temperature minimum -20 ℃ -4 ℉
12 Ambient temperature maximum 50 ℃ 122 ℉
13 Relative humidity minimum 0 % 0 %
14 Relative humidity maximum 100 % 100 %
GasMetricImperial
15 Minimum flow / minute 2.5 Liter 0.7 Gallon
16 Maximum flow / minute 5.0 Liter 1.3 Gallon
17 Minimum flow / hour 150 Liter 40 Gallon
18 Maximum flow / hour 300 Liter 79 Gallon
19 Pressure minimum 50 kPa 7 PSI
20 Pressure maximum 350 kPa 51 PSI
21 Gas quality No corrosive gasses: suitable for O2, air, CO2, N2 No corrosive gasses: suitable for O2, air, CO2, N2
ElectricalMetricImperial
22 Unit power consumption No pump included with this product. Estimated power consumption 100-250 watts. No pump included with this product. Estimated power consumption 100-250 watts.
23 Wetted parts Acrylic Styrene Acrylonitrile, PVC, EPDM Acrylic Styrene Acrylonitrile, PVC, EPDM
24 Pump model This product works both with submersible pumps and single stage centrifugal pumps. This product works both with submersible pumps and single stage centrifugal pumps.
25 Pump pressure setting This product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details). This product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details).
26 Control No automatic operation No automatic operation
Pump
27 @option PDM-2573
28 @option PDM-4033
29 @option PMD-15013A2Z-E3
30 @option Iwaki Pump 1/3HP, Model MD-100RLT
31 @option Grundfos CM10-1
ConnectionsMetricImperial
32 Water inlet Flange 25 mm or 1 inch threaded connection Flange 25 mm or 1 inch threaded connection
33 Water outlet Flange 13 mm or 1/2 inch threaded connection Flange 13 mm or 1/2 inch threaded connection
34 Gas inlet 10 mm push to connect fitting or 6mm for ozone 10 mm push to connect fitting or 6mm for ozone
Dimensions & weightMetricImperial
35 Dim. (w) x (d) x (h) 112 x 275 x 110 mm 4.4 x 10.8 x 4.3 inch
36 weight 2.8 Kg 6.2 lbs.
37 Shipping dim. (w)x(d)x(h) 16 x 45 x 16 cm 6 x 18 x 6 inch
38 Shipping weight 5 Kg 11 lbs.
Remarks
39 Other remarks
