Libelle FL5035 24VDC

  • Self-priming diaphragm pump
  • Max. liquid temperature: 45 °C
  • Protection class: IP54
  • 24時間フル稼働が可能
  • Reinforce the ten hexagon socket screws on the front of the pump head every 10-15 days to prevent the pump head screws form loosening and leaking due to thermal expansion and contraction of the pump head.
  • AC pump brushless device
  • The running time of AC motor is determined by the wear degree of silicon steel sheet. The service life of carbon brushes for 12V and 24V DC motors is 1500 hours.
  • Pump running at 205 kPa with a Turbiti 707 or 808
  • Max O2 saturation 325% at 17.5 degrees Celsius.

Slideshow Items

The Libelle FL5035 24VDC is equipped with a built-in overpressure valve.

This enables the pump to switch on automatically as soon as there is water discharge in the system and to stop as soon as the water discharge stops.

Applications

Ozone nanobubbles

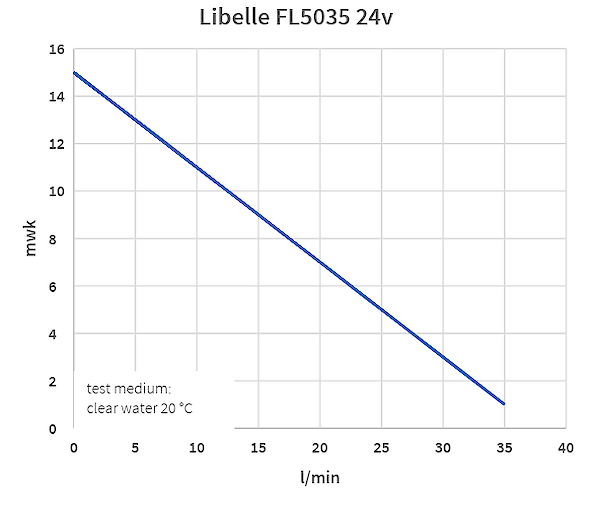

Specifications

# 液体 規格 50 Hz60 HzHead
1最大ポンプ能力リットル35
2最大ポンプ容量ガロン9
31分あたりリットル20.5   Meter
# 電気 規格 ---
4電圧24VDC
5アンペア8 AMPS
6消費電力200 WATT
7ポンプ室耐腐食性材料
8電源コードの長さ2 meter with ring connector on one end clamp connector on the other side. メートル
#接続メートル法ヤードポンド法-
9給水口Rc 1”
10水出口RC 1”
11備考19mm ホースニップル同梱
#サイズメートル法ヤードポンド法-
12製品サイズ (幅)x(奥)x(高) mm155 x 260 x 155 6 x 10 x 6
13重量4.85 Kg11 lbs
14製品サイズ (幅)x(奥)x(高)18 x 28 x 20 1 x 1 x 1
15運送重量5.5 Kg12 lbs
